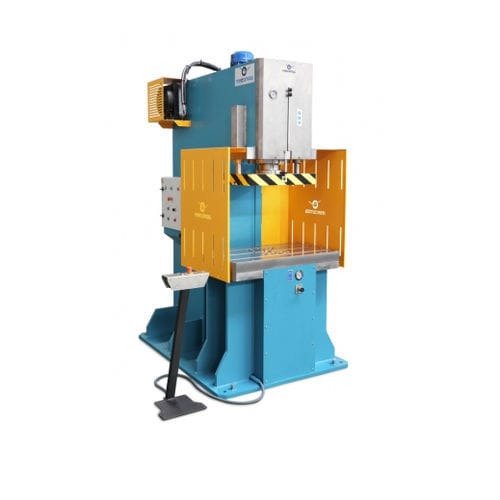

Hydraulic press PCM160C 5076
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Force
160 tf
- Opening
600 mm
(24 in)- Stroke
400 mm
(15.748 in)- Table width
460 mm, 650 mm
(18 in, 26 in)- Table length
700 mm, 1,100 mm
(28 in, 43 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
3 mm/s
- Weight
6,600 kg
(14,551 lb)- Overall length
1,350 mm
(53 in)- Overall width
1,780 mm
(70 in)- Overall height
3,100 mm
(122 in)
Description
Throat depth (mm)510
Engine power (HP)7,5
Approximation speed (mm/sec)12
Cushion plate (mm)400x400
Cushion power [tons]60
Cushion stroke [mm]300
