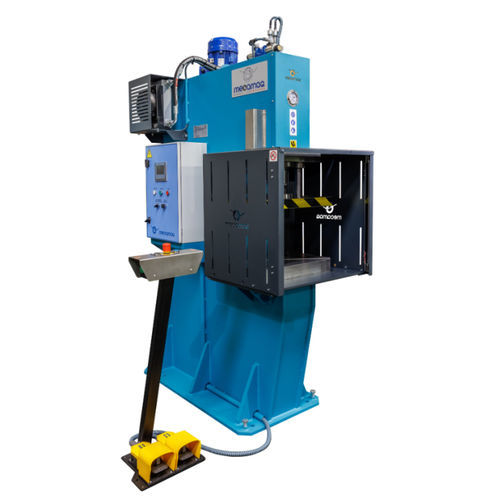

Hydraulic press PCM25 5708
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Force
25 tf
- Opening
300 mm
(12 in)- Stroke
200 mm
(7.874 in)- Table width
350 mm
(14 in)- Table length
550 mm
(22 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
20 mm/s
- Weight
1,800 kg
(3,968 lb)- Overall width
860 mm
(34 in)- Overall height
2,335 mm
(92 in)
Description
PLC&HMI 4".
Aproximation speed 65mm/s.
Features
Guides Ø (mm) - 40
Throat depth (mm) - 200
Lower and upper plate (mm) - 550x350
Engine power (HP) - 5,5
Approximation speed (mm/s) - 65
Depth (mm.) - 1450
