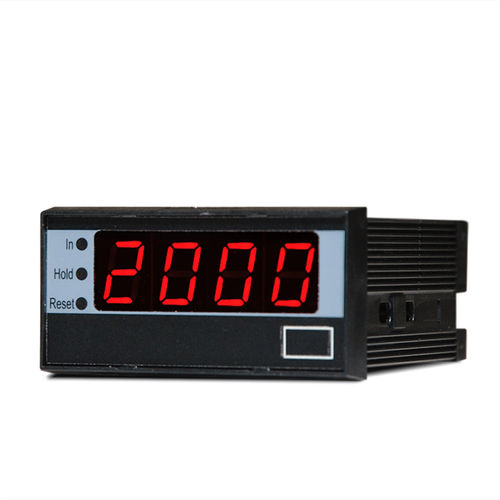

Process indicator MP30 P2

currentAC voltageAC

4 digit display with fixed scale in a 36x72 box for DC or AC voltage input, DC or AC current input or potentiometer input. The MP30 P2 model is a programmable instrument at fixed scale. The available scales are shown in "Characteristics" section. The instrument offers the following functions : 4 digit display (-1999 +1999 reading points). automatic reading zeroing fixed zero (visualisation from -1990 to 1990) set up by not accessible keys programmed filter (from 0,5 to 33 conv/sec) Readings: 4 (2000) digits Accuracy input DC: < 0,5% Accuracy input AC: 2% Thermal stability: 50 ppm/°C Potentiometers connectable: from 500Ω to 50KΩ Potentiometer power supply: 2,0Vdc Power supply: 230Vac 50÷60HZ | 115Vac 50÷60HZ | 25Vac 50÷60HZ | Vcc o Vpt (12÷30Vdc) Power absorption: 1,5 W Max working temperature: 50 °C Digits height: 13mm Dimensions: 36x72 ( 90 mm. Depth) Mounting plate: 33mm (h) x 69 mm (l) Weight: 250 gr. Mounting: by bolts
