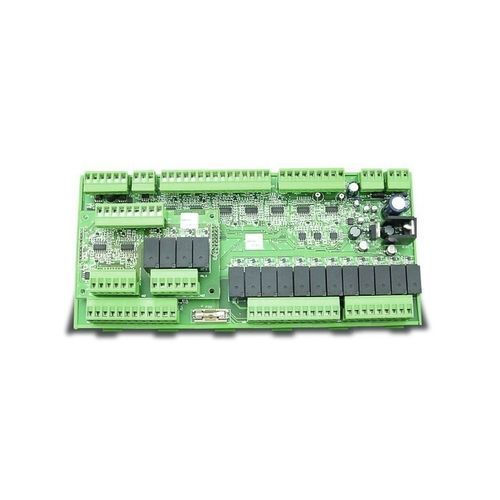

MPNC100 is a board for industrial automation with digital and analog inputs and outputs .
The board interfaces with PLC or HMI devices through a CANopen bus.
The board, DIN rail mountable and 24Vac or DC powered , is equipped with 9 NPN or PNP digital inputs, 12 digital relay outputs, 8 inputs for PT100, 2 inputs for 4-20mA.
The analog inputs are 12-bit resolution. MPNC100 provides an analog output 0-10V 10bit. There are also 2 inputs for TA and 1 input for the TV.
MPNC100 carries out a measurement of the phase shift between the inputs TA and TV for calculating the power on asynchronous motors.
MPNC100 can hold an expansion board that adds 4 NPN or PNP digital inputs, 4 digital relay outputs, 2 PT100 inputs, 2 4-20mA inputs (only for MPNC100 01 and MPNC100 02 Models).
ANALOG INPUTS:
Motherboard:
2 for (TA 50A max) inputs
2 for 0÷20mA - 4÷20mA inputs
1 for TV (2,5V=400Vac) input
8 for PT100 inputs (MPNC100 01 and MPNC100 03 Models)
4 for PT100 inputs (MPNC100 02 and MPNC100 04 Models)
4 for 0÷10V inputs (MPNC100 02 and MPNC100 04 Models)
Expansion board:
2 for PT100 inputs
2 for 0÷20mA - 4÷20mA inputs
DIGITAL INPUTS:
Motherboard:
9 for NPN / PNP inputs (configurable on request)
Expansion board:
4 for NPN / PNP inputs (configurable on request)
ANALOG OUTPUTS:
Motherboard:
1 for 0÷20mA - 4÷20mA output
