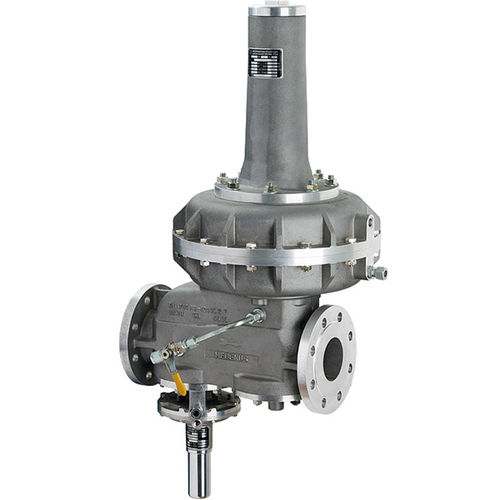

Gas pressure regulator RS 251for oxygenfor compressed airfor inert gases
Add to favorites
Compare this product
Characteristics
- Product
- for oxygen, for compressed air, for gas, for inert gases, for air, for hydrogen, for nitrogen, for natural gas, propane, for CO2, for CNG, for LPG
- Technology
- membrane, spring
- Number of stages
- single-stage
- Material
- cast aluminum
- Applications
- high-pressure, industrial, precision, for pneumatic applications, low-pressure, for vacuum, for variable air volume, HVAC, for pressure calibration, sanitary, for hydraulic applications
- Other characteristics
- line, compact, with integrated safety, direct-operated, tracking, high-precision, high-flow, medium-flow, proportional, with solenoid valve, flange, CE certified, mechanically-operated, explosion-proof, modular, low-speed, corrosion-resistant, electropneumatic, rugged, high-performance, direct-acting, motorized, vertical, ultra low-pressure, bypass, high-precision, zero-bleed
- Pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 25,000 m³/h
(882,866.67 ft³/h)Min.: 5 m³/h
(176.57 ft³/h)- Orifice diameter
Max.: 95 mm
(3.74 in)Min.: 27.5 mm
(1.083 in)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
The MEDENUS gas pressure regulator type RS251 ensures a constant outlet pressure - regardless of the primary (inlet) pressure - when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The inbuilt safety shut off valve ensures a safe shut off if the pressure is too high or too low.
The gas pressure regulator RS251 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The RS251 is available with flange connections DN25 to DN200 and working pressure up to 8,0 bar. All gas pressure regulators are certified by DVGW and CE.
VIDEO
Catalogs
product leaflet RS250/251
24 Pages
General Catalogue MEDENUS 2023
66 Pages
