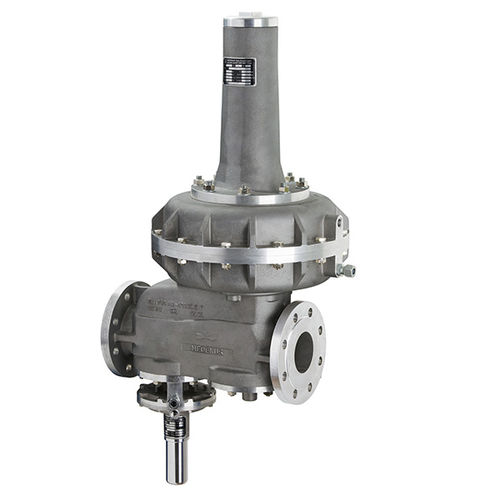

Gas pressure regulator RS 255
propanefor inert gasesfor compressed air

Gas pressure regulator - RS 255 - MEDENUS Gas- Druckregeltechnik GmbH - propane / for inert gases / for compressed air
Gas pressure regulator - RS 255 - MEDENUS Gas- Druckregeltechnik GmbH - propane / for inert gases / for compressed air
Gas pressure regulator - RS 255 - MEDENUS Gas- Druckregeltechnik GmbH - propane / for inert gases / for compressed air - image - 2
Add to favorites
Compare this product
Go to the MEDENUS Gas- Druckregeltechnik GmbH website for more information

Characteristics

Product
propane, for inert gases, for compressed air, for gas, for air, for liquefied natural gas, for oxygen, for hydrogen, for LPG, for nitrogen, for natural gas, for CO2, for CNG
Technology
membrane, spring
Number of stages
single-stage
Material
cast aluminum
Applications
industrial, precision, high-pressure, for pneumatic applications, for pressure gauges, low-pressure, for vacuum, for variable air volume, HVAC, for pressure calibration, sanitary, for hydraulic applications
Other characteristics
compact, with pressure gauge, line, high-precision, ultra low-pressure, high-flow, corrosion-resistant, bypass, motorized, low-speed, mechanically-operated, with solenoid valve, electropneumatic, proportional, flange, modular, rugged, high-precision, zero-bleed, with integrated safety, high-performance, CE certified, explosion-proof, direct-acting, with filter, chemical-resistant, vertical, direct-operated, medium-flow
Pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Flow

Min.: 5 m³/h
(176.57 ft³/h)

Max.: 25,000 m³/h
(882,866.67 ft³/h)

Orifice diameter

Min.: 27.5 mm
(1.083 in)

Max.: 95 mm
(3.74 in)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Description

The MEDENUS gas pressure regulator type RS255 ensures a constant outlet pressure - regardless of the primary (inlet) pressure - when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The inbuilt safety shut off valve ensures a safe shut off if the pressure is too high or too low. The gas pressure regulator RS255 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The RS255 is available with flange connections from DN 50 to DN100 and working pressure up to 16,0 bar. All gas pressure regulators are certified by DVGW and CE.
