Gas pressure regulator RSP254

for oxygenfor compressed airfor LPG

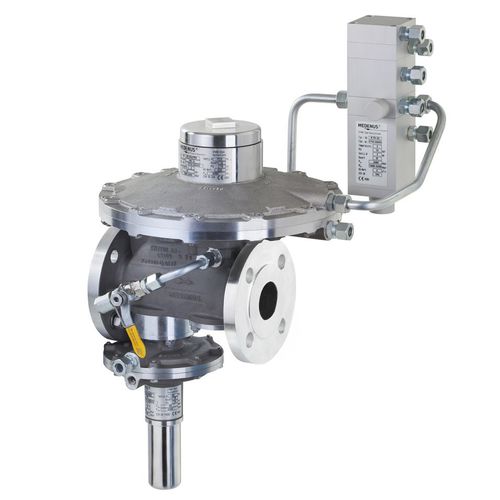

The gas pressure regulators RSP254/255 are suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request). RSP254 is available with flange connections from DN 25 to DN200, RSP255 from DN50 to DN100 and a maximum inlet pressure of 16,0 bar. All gas pressure regulators are certified by DVGW and CE. The pilot operated regulators series RSP254/255 are applicable to applications for outlet pressures from 10 mbar up to 12 bar and needed accuracy class up to 1%. With 3 different versions of pilots we always have the perfect match to the requirements of your projects up to 16 bar inlet pressure. The pilot R70-10 is used for high pressure applications from 500 mbar to 12 bar outlet pressure especially needed in the industrial area, gas furnaces etc. but also in the gas distribution and for manufacturers of gas engines. R70-20 is developed as a special device with an integrated 1:2 booster and an external I/P converter (option) we can realize follow set point systems for gas engines. Pilot R70-100 is the perfect solution when it comes to low pressure applications from 10 mbar to 500 mbar outlet pressure with very high accuracy. R70-100 is mainly used in the city gas distribution but also in the industrial area.
