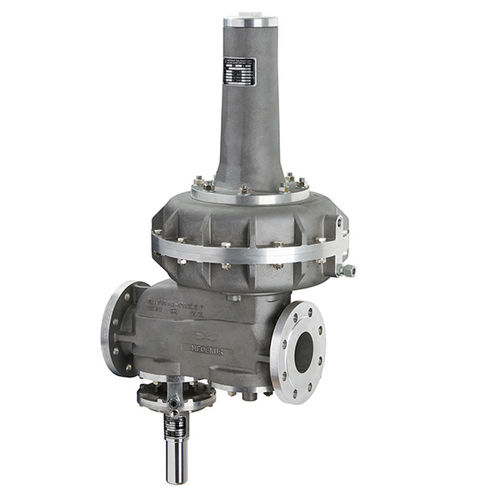

Gas pressure regulator RS 254for compressed airfor inert gasesfor air
Add to favorites
Compare this product
Characteristics
- Product
- for gas, for compressed air, for inert gases, for air, for oxygen, for nitrogen, propane, for hydrogen, for CO2, for LPG, for natural gas, for CNG
- Technology
- membrane, spring
- Number of stages
- single-stage
- Material
- cast aluminum
- Applications
- industrial, high-pressure, precision, for pneumatic applications, low-pressure, for vacuum, for variable air volume, HVAC, for pressure calibration
- Other characteristics
- proportional, compact, high-precision, line, electropneumatic, vertical, mechanically-operated, high-flow, with solenoid valve, bypass, low-speed, modular, rugged, high-performance, explosion-proof, flange, CE certified, medium-flow, high-purity, tracking, high-precision, zero-bleed, high-temperature, motorized, direct-acting, direct-operated, ultra low-pressure, with integrated safety, corrosion-resistant
- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.06 psi)- Flow
Min.: 5 m³/h
(176.57 ft³/h)Max.: 15,000 m³/h
(529,720 ft³/h)- Orifice diameter
Min.: 17.5 mm
(0.689 in)Max.: 115 mm
(4.528 in)- Temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
The MEDENUS gas pressure regulator type RS254 ensures a constant outlet pressure - regardless of the primary (inlet) pressure - when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The inbuilt safety shut off valve ensures a safe shut off if the pressure is too high or too low.
The gas pressure regulator RS254 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The RS254 is available with flange connections from DN25 to DN200 and working pressure up to 16,0 bar. All gas pressure regulators are certified by DVGW and CE.
Catalogs
product leaflet RS254/255
24 Pages
