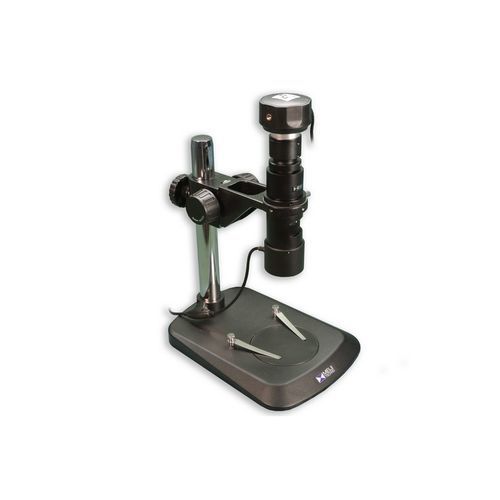

Zoom stereo microscope USB400MAC

opticalinspectionmetallurgical

0.7X-5X Macrozoom system with 16 LED array illumination powered by USB 2.0 with rheostat, 1x objective 0.4x trinocular eyepiece on a 205mm x 273mm ergonomic slope stand with a 32 mm post on a coarse focus block and a 5 MP USB 2.0 camera (X-1000U) still shots and live video 10 fps with measurement software, W.D.105mm with basic measurement software. •5 MP photography, 1080P HD video, supports USB operating mode •Continuous zoom objective lens, all the way parfocalization, high resolution, high definition. •Comprehensive resolution (when display is on 21 inch 16:9 screen) 17 ? 121.5 Continuous zoom, 68 ? 486 Continuous zoom (this data is based on preview resolution is 640×480 with decompression zoom and the picture is displayed to adapt to screen) •Coaxial illumination possesses characters such as handy installation, High efficiency, light weight and small volume •The software does not only provide snapshots, it also records, zoom control, contrast, brightness, saturation, share, edit, send to email and has professional measurement functions MACRO ZOOM LEN 1X objective lens 105mm ( 4”) working distance STAGE 6” Plastic Black and White Stage Plate Plain stage Locked-on spring loaded stage clips (paired) STAND 205mm (8”) base 32mm diameter stainless steel post, 11” in height Rack and pinion design, cast aluminum alloy frame FOCUSING Coaxial coarse and 200μm fine adjustments, 2μm precision 50mm Friction adjustment Rack and pinion focusing with slip clutch and tension adjustment “Slip-clutch” system protects against over-focusing
