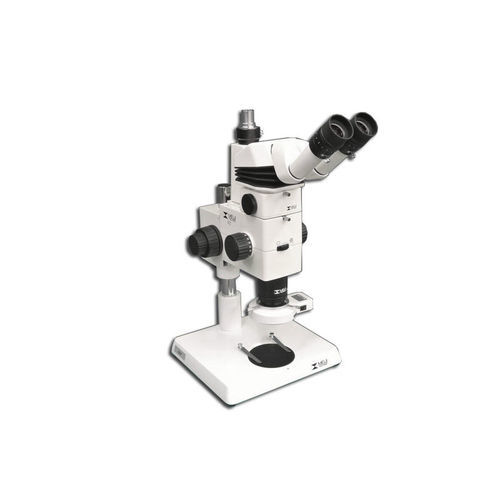

Research microscope RZ Series

digitalbinoculartrinocular

The Meiji Techno RZ Series are advanced, high performance, modular, stereo microscopes that are specifically designed with today’s demanding applications in mind. This series is engineered around a Common Main Objective and parallel optical paths, as it offers crisp, distoration-free, high resolution images at magnifications ranging from 3.75X to 300X. This RZ configured system has an ergonomic binocular head that is inclinable and adjustable vertically from 10° to 50° head, accepts 30mm eyepiece (MA749) and an UWF10X eyepiece, high-eyepoint, focusable, FN 24 (each) in which can receive a 25mm O.D. reticle (MA730) (Qty 2 is needed). The binocular head is attached to MA751 which is a photo/video attachment with sliding 80/20 beam-splitter for attaching 35mm, CCD and CMOS video or digital cameras, making the RZ into a trinocular head. Its RZ-B body features a 10:1 zoom ratio with built-in variable dual-iris diaphragms and 12 positive click stops through the zoom range. It has two perpendicular columns of eight zoom lenses in four groups move in smooth motion controlled by ergonomically sized and positioned zoom knobs. A magnification indicator is conveniently located on the zoom controls. The RZ-P stand base is a plain stand with B/W plastic stage plate, 12.79” (325mm) tall pillar. The MA308 attached is an adapter to mount the MA962 illuminator mounts directly on RZ plan objectives. The MA962 (3.5W) illuminator delivers powerful microscope quality light with its precisioned aligned LEDs. It has 58mm inner diameter and an input voltage of 100-240V and output of 12V. Its color temperature is 6400K and has an illuminance of above 19000LUX LED.
