Optical microscope SMT-8TR

inspectiontrinocularUSB

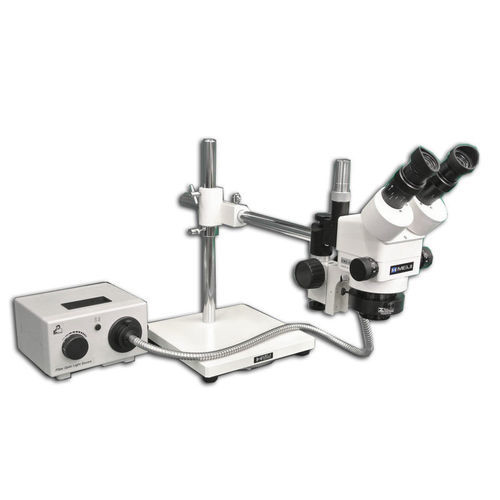

SMT-8TR Trinocular Zoom 7X – 90X Stereo Microscope package with Incident Annular Ring Fiber Optic ring Light on a Boom Stand with 174mm (6.8”) Working Distance The SMT-8TR Zoom Stereo Microscope Inspection system is Meiji Techno America’s complete turnkey microscope package, based on our EMZ Series microscopes. The EMZ-8TR microscope body has all three tubes active meaning the trinocular tube along with both eyepieces is all active simultaneously, 80/20 split 80% of the light is directed on the trinocular tube and 20% to the eyepieces. There is no beam splitter lever that you have to pull out.Those who must work to the most demanding standards of the SMT industries facilities require a microscope system for assembly, repair, inspection and Quality Control. The SMT Inspection Series is equipped with Meiji Techno’s most versatile Boom Stand which can be adjusted vertically or horizontally and side to side to address the ergonomic needs of every production or test engineer. Equipped with an auxiliary lens which gives the user over 6 inches of working distance. This allows ample working room to allow the engineers to solder and work on PCB boards being inspected without compromising Ergonomics. Surface-mount Technology (SMT) is a method for producing electronic circuits in which the components are mounted or placed directly on to the surface of printed circuit boards ( PCB’s). Since SMT or SMD technologies can be used on the same board, with the through-hole technology used for components not suitable for surface mounting such as large transformers and heat-sinked power semiconductors.
