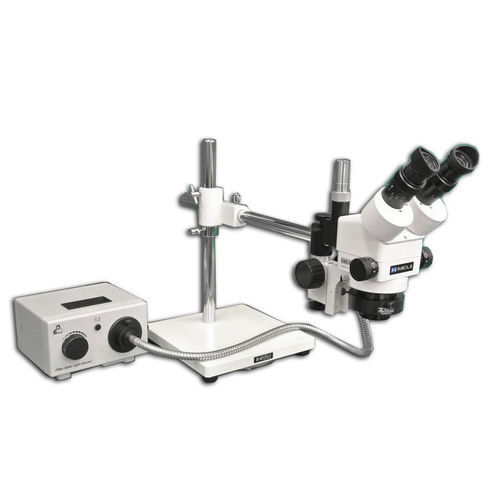

Optical microscope SMT-5TR

inspectiontrinocularzoom

The SMT-5TR Zoom Stereo Microscope Inspection system is Meiji Techno America’s complete turnkey microscope package, based on our EMZ Series microscopes. Those who must work to the most demanding standards of the SMT industries facilities require a microscope system for assembly, repair, inspection and Quality Control. The SMT Inspection Series is equipped with Meiji Techno’s most versatile Boom Stand which can be adjusted vertically or horizontally and side to side to address the ergonomic needs of every production or test engineer. Equipped with an auxiliary lens which gives the user over 6 inches of working distance. This allows ample working room to allow the engineers to solder and work on PCB boards being inspected without compromising Ergonomics. Surface-mount Technology (SMT) is a method for producing electronic circuits in which the components are mounted or placed directly on to the surface of printed circuit boards ( PCB’s). Since SMT or SMD technologies can be used on the same board, with the through-hole technology used for components not suitable for surface mounting such as large transformers and heat-sinked power semiconductors. • Stereo Zoom Microscope Body (Binocular or Trinocular Zoom Stereo Microscope) • Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle) • Boom Stand (Provides complete flexibility for horizontal and vertical adjustment, sturdy metal 40 lbs base for excellent stability with 20mm drop down post •F focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment. Coarse focus focusing block with 84.2mm diameter opening accepts EMZ series)
