CNC lathe F seriesverticalhydrostaticdouble-column
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Structure
- double-column, hydrostatic
- Turret
- four-turret
- Performance
- high-rigidity
- Diameter
Min.: 2,500 mm
(98.43 in)Max.: 8,000 mm
(314.96 in)- Spindle speed
Min.: 0.2 rpm
(1.257 rad.min-1)Max.: 63 rpm
(395.841 rad.min-1)- Part diameter
Min.: 2,250 mm
(89 in)Max.: 6,300 mm
(248 in)- Nominal power
55 kW, 90 kW, 132 kW
(74.8 hp, 122.4 hp, 179.5 hp)- Weight
Min.: 34 t
(37 us ton)Max.: 256 t
(282 us ton)
Description
Overview
Key features
Technical highlights (selected parameters)
Options & customization
Applications and industries
Ordering and technical support

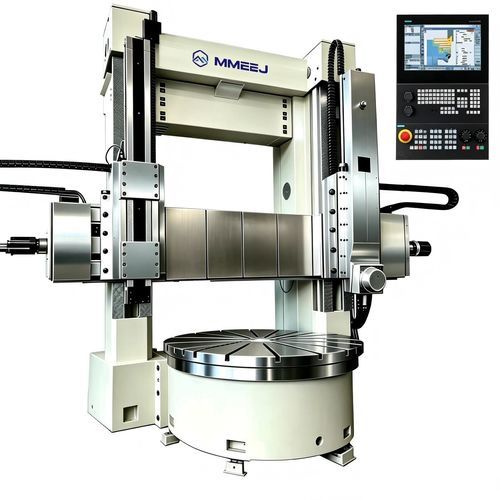

- CNC double-column vertical lathe F series designed for heavy-duty turning of large-diameter workpieces. Primary structure in HT250–HT300 gray cast iron (aged and stress-relieved). Spindle and ram cast in QT600 ductile cast iron. Ball screw ф63 mm. CNC control options: SIEMENS 828D, FANUC OI-TF/OHTF, GSK980TDI.
Key features
- Machine construction: double-column vertical bed with rigid crossrail and selectable hydrostatic or rolling guideways.
- Materials & treatment: HT250–HT300 cast iron, manual scraping on contact surfaces, gearset forged/quenched/ground (40Cr/45 steel) with precision shims.
- Spindle & drives: QT600 spindle/ram, worktable drive with multi-step or stepless options, main motors 55–132 kW depending on model.
- Feed & kinematics: stepless feed ranges 1–500 / 0.1–1000 mm/r, rapid traverse up to 3000/4000 mm/min, worktable speed ranges per model down to 0.2 r/min.
Technical highlights (selected parameters)
- Available models: CK5225Fx, CK5231Fx, CK5235Fx, CK5240Fx, CK5250Fx, CK5263Fx, CK5263FxH/W, CK5280Fx (H/W variants where noted).
- Max. turning diameter: φ2500 → φ8000 mm (model-dependent).
- Worktable diameters: φ2250 → φ6300 mm; max. workpiece weight up to 125 t depending on model.
- Crossrail travels, ram strokes and cutting forces vary by model (see per-model datasheet); main motor power range: 55 kW (AC) up to 132 kW (DC).
- Ball screw: domestic NJGR/Hanjiang, ф63 mm; bearings and electrical components specified per model.
Options & customization

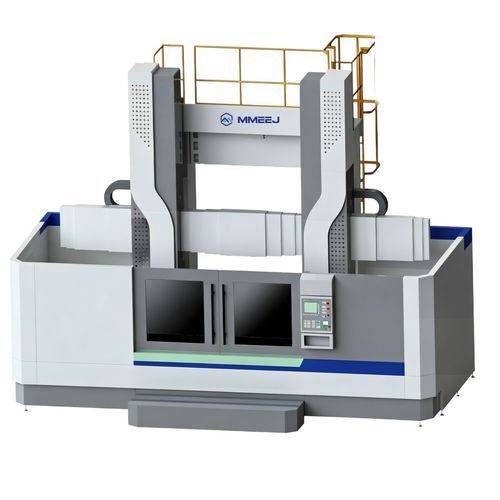

- Available options include full closed-loop control, semi-enclosed guarding, hinged door type, chip conveyor, hydrostatic or rolling guide selection, various tool holders (square ram, 4-station turret) and customer-specific configurations.
- Factory acceptance tests (FAT), installation and commissioning support available on request.
Applications and industries
- Suitable for heavy machining tasks in energy, shipbuilding, steel, heavy machinery, power generation and other industries requiring large-diameter turning.
Ordering and technical support
- Detailed per-model technical tables and configuration assistance are available. Contact supplier for lead times, options, spare parts and on-site support.
