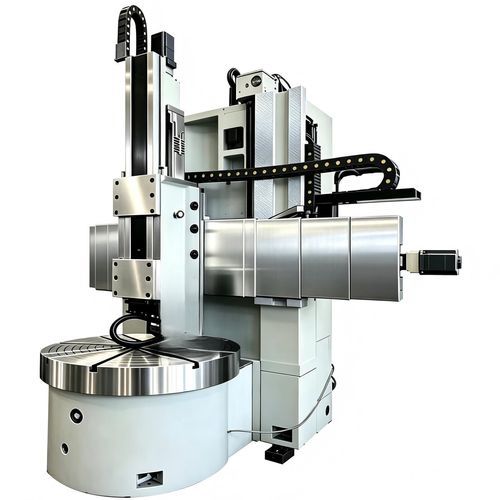

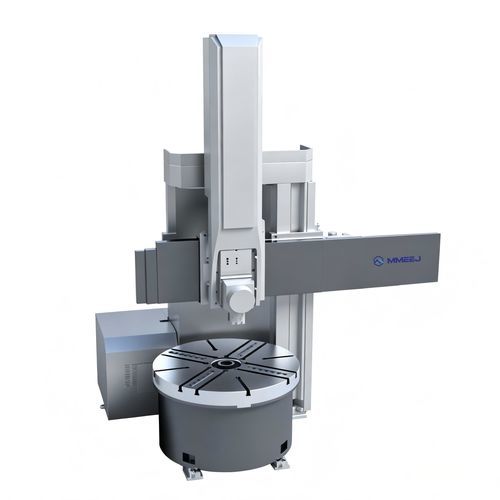

Conventional lathe Dx H/W series

verticalsingle-column12 tools

Overview

• Machine structure: single-column vertical turning lathe series D, models C578Dx H/W, C5112Dx H/W, C5116Dx H/W, C5120Dx H/W
• Machine material: HT250–HT300 gray cast iron, aged and stress-relieved for high rigidity and minimal deformation
• Spindle & ram material: QT600 ductile (nodular) cast iron
• Material hardness and process: material hardness ≥ HB180; rough machining → secondary aging → finish machining
• Surface precision: manual hand-scraping of contact surfaces; crossbeam convexity correction; PTFE soft strips on tool-post slideways to reduce friction
• Gearing: forged, quenched and ground gears (40Cr / 45 steel) with ground spacers/shims for accurate assembly
• Ball screw: domestic brand (NJGR / Hanjiang), diameter φ63 mm

Technical table
Models: C578Dx H/W | C5112Dx H/W | C5116Dx H/W | C5120Dx H/W
Max. turning diameter: φ800 | φ1250 | φ1600 | φ2000
Max. workpiece height (H=100): 6 mm | 10/14 mm | 10/14/16 mm | 10/14/16 mm
Max. workpiece weight: 2 t | 3.2/5 t | 5/8 t | 8 t
Worktable diameter: 720 mm | 1000 mm | 1400 mm | 1800 mm
Worktable speed / steps: 15–460 r/min (16 stepless) | 6.3–200 r/min (16 stepless) | 5–160 r/min (16 stepless) | 3.15–100 r/min (16 stepless)
Max. table torque: 3.2 Nm | 20 Nm | 25 Nm | 30 Nm
Crossrail travel: / | 650/1000 mm | 650/1000/1200 mm | 650/1000/1200 mm
Crossrail lifting speed: / | 660 mm/min | 660 mm/min | 660 mm/min
Crossrail lifting motor power: / | 2.2 kW | 2.2 kW | 2.2 kW
Vertical tool holder horizontal travel: 710 mm | 700 mm | 915 mm | (-10–1200) mm
Vertical tool holder vertical travel (ram stroke): 600 mm | 650/800 mm | 800/900 mm (pentagonal turret) / 1000 mm (square/octagonal ram) | 800/900 mm (pentagonal turret) / 1000 mm (square/octagonal ram)
Vertical tool holder swivel angle: ±30° for all models
Side tool holder horizontal travel: / | 500 mm | 630 mm | /
Side tool holder vertical travel: / | 900 mm | 900 mm | /
Side tool holder max. turning diameter: / | φ1100 | φ1400 | /
Tool holder feed range: 0.8–86 r/min (all models)
Tool holder max. cutting force: 3.2 KN | 17.5 KN | 25 KN | 25 KN
Tool holder rapid traverse speed: 1800 mm/min (all models)
Tool holder feed steps: 12 steps (all models)
Motor power of feed: 1.3/1.7 | 1.3/1.8 | 1.3/1.8 | 1.3/1.8 (kW)
Main motor power: 15 kW | 22 kW | 30 kW | 37 kW
Tool shank cross-section: 30×40 mm (all models)
Worktable guideway type: rolling guide (C578Dx/C5112Dx) — slide/rolling guide (C5116Dx) — slide guide (C5120Dx)
Ram type: pentagonal ram / square ram / octagonal ram options depending on model
Machine weight (approx.): 8 t | 8.5/9.5 t | 12.7/13.5/13.8 t | 16 t
Overall dimensions (L×W×H): 4200×2900×3850 mm | variants: 2660×2740×3550 / 2660×2740×3950 / 2660×3740×4150 | 2770×3450×3400 / 2770×3450×3900 | 4110×2900×3700 mm
Options: protective devices, coolant system, chip removal system, digital readout (DRO), PLC control, hydraulic chuck


Technical specifications

• Series name: Standard Single Column D Series
• Available models: C578Dx H/W; C5112Dx H/W; C5116Dx H/W; C5120Dx H/W
• Base materials: HT250–HT300 gray cast iron (aged & stress-relieved); spindle and ram in QT600 ductile (nodular) cast iron
• Gearing: forged, quenched and ground gears in 40Cr / 45 steel with precision ground spacers/shims
• Precision treatments: manual hand-scraping of contact surfaces and PTFE soft strips on slideways for low friction
• Ball screw: domestic brands (NJGR / Hanjiang), diameter φ63 mm
• Turning capacity: max. turning diameters from φ800 up to φ2000 depending on model
• Worktable sizes: 720 mm to 1800 mm depending on model
• Motor power range: main motor 15–37 kW depending on model
• Workpiece capacity: supports workpiece weights from 2 t up to 8 t depending on model
• Feed & traverse: tool holder feed 0.8–86 r/min, rapid traverse 1800 mm/min; 12 feed steps
• Optional equipment: protective devices, coolant and chip removal systems, DRO, PLC control, hydraulic chuck
