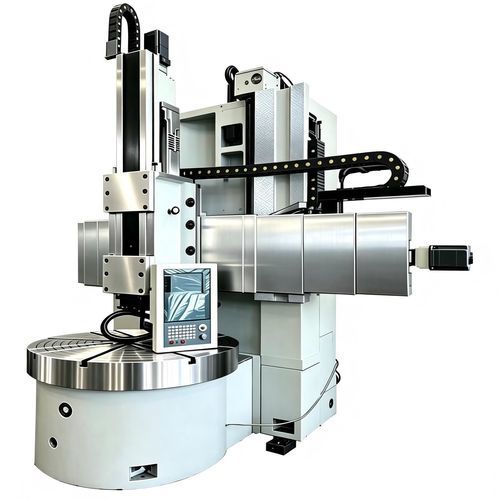

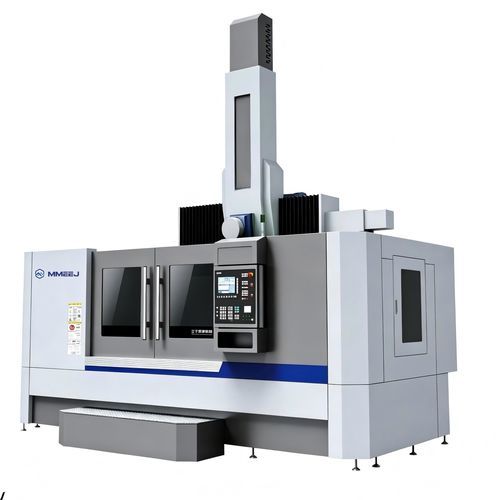

CNC lathe Fx H/W series

verticalsingle-columnfour-turret

Short description

• Machine material: HT250-HT300 gray cast iron, aged & stress-relieved for high rigidity and minimal deformation
• Material hardness: ≥ HB180; rough machining followed by secondary aging finish machining
• Manual scraping of contact surfaces to reduce friction and oxide layer; crossbeam with convexity; PTFE soft strips on tool post slideways
• Gears & gear ring: forged, quenched and ground (40Cr, 45 steel); ground spacers/shims for assembly precision
• Spindle & ram material: QT600 ductile (nodular) cast iron
• Ball screw: domestic brand (NJGR/Hanjiang), diameter ф63 mm
• Electrical & bearings: Chint electrical components with overload protection; HRB/LY-C/C & U bearings

Technical table
Model | Unit | CK578Fx H/W | CK5112Fx H/W | CK5116Fx H/W | CK5120Fx H/W
Max.turning diameter | mm | φ800 | φ1250 | φ1600 | φ2000
Max.workpiece height (Hx100) | mm | 6 | 10/12/14 | 10/12/14/16 | 10/12/14/16
Max.workpiece weight | t | 2 | 3.2/5 | 5/8 | 8
Worktable diameter | mm | φ720 | φ1000 | φ1400 | φ1800
Worktable speed steps | | | Stepless | 16Step/Stepless | 16Step/Stepless | 16Step/Stepless
Worktable speed range | r/min | 15-460 | 6.3-200 | 5-160 | 3.15-100
Max.table torque | Nm | 3200 | 10000 | 20000 | 30000
Crossrail travel | mm | / | 650/850/1050 | 650/850/1050 | 650/850/1050
Crossrail lifting speed | mm/min | / | 660 | 660 | 660
Crossrail lifting motor power | Kw | / | 2.2 | 2.2 | 2.2
Tool holder vertical travel | mm | 710 | 850 | 1000 | 1200
Horizontal travel of vertical tool holder | mm | 600 | 850/1000 | 850/1000 | 850/1000
Feed steps of vertical tool holder | | | Stepless | Stepless | Stepless | Stepless
Vertical tool holder feed range | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 | 0.1-1000
Feed range of vertical tool holder | mm/min | 3000 | 3000 | 3000 | 3000
Vertical tool holder max.cutting force | Nm | 10000 | 10000 | 20000 | 25000
Turning tool shank cross-section | mm | 32x32 | 40x40 | 40x40 | 40x40
Machine weight(approx.tons) | t | 8.5 | 10/12 | 12/13.5/15/16.5 | 15/17/19/21
Spindle motor power (kW) | kw | 18.5 | 22(16steps)/37(stepless) | 30(16steps)/45(stepless) | 37(16steps)/45(stepless)
CNC system | | SIEMENS 828D / FANUC OI-TF / GSK980TDI | SIEMENS 828D / FANUC OI-TF / GSK980TDI | SIEMENS 828D / FANUC OI-TF / GSK980TDI | SIEMENS 828D / FANUC OI-TF / GSK980TDI
Table guideway type | | Rolling guide | Slide guide / Rolling guide | Slide guide / Rolling guide | Slide guide / Rolling guide
Full closed-loop control | | Option | Option | Option | Option
Semi-enclosed guarding, chip conveyor, coolant system | | Option | Option | Option | Option
Ram type | | Square ram / 4-station turret | Square ram / 4-station turret | Square ram / 4-station turret | Square ram / 4-station turret
Manual/Hydraulic chuck | | Option | Option | Option | Option

Technical specifications

• Series name: CNC Single-Column Vertical Lathe F series
• Machine material: HT250-HT300 grey cast iron, aged and stress-relieved
• Material hardness: ≥ HB180
• Manual scraping of contact surfaces; PTFE soft strips on tool post slideways
• Forged, quenched, ground gears (40Cr, 45 steel) with ground spacers/shims for precision assembly
• Spindle & ram material: QT600 ductile (nodular) cast iron
• Ball screw: domestic brand (NJGR/Hanjiang), diameter ф63 mm
• Electrical: Chint components with overload protection
• Bearings: HRB/LY-C/C & U bearings
• Available models and key capacities: CK578Fx H/W (φ800, table φ720, spindle 18.5 kW), CK5112Fx H/W (φ1250, table φ1000), CK5116Fx H/W (φ1600, table φ1400), CK5120Fx H/W (φ2000, table φ1800)
• Worktable speed ranges vary by model (15-460 r/min down to 3.15-100 r/min)
• Max table torque up to 30000 Nm (largest model)
• Tool holder vertical travel up to 1200 mm; horizontal travel up to 1000 mm (depending on model)
• Vertical tool holder feed range 0.1–1000 mm/min; rapid feed up to 3000 mm/min
• Vertical tool holder cutting force up to 25000 Nm (largest model)
• Turning tool shank sizes: 32x32 mm or 40x40 mm depending on model
• Machine approximate weight range from ~8.5 t up to ~21 t depending on model
• Spindle motor power options: 18.5 kW up to 45 kW (model-dependent, step/stepless variants)
• CNC system options: SIEMENS 828D, FANUC OI-TF, GSK980TDI
• Guideway types: rolling guide or slide/rolling guide combinations (model-dependent)
• Options: full closed-loop control, semi-enclosed guarding, chip conveyor, coolant system, manual/hydraulic chuck
