CNC milling-turning center

vertical3-axisXZ

Overview

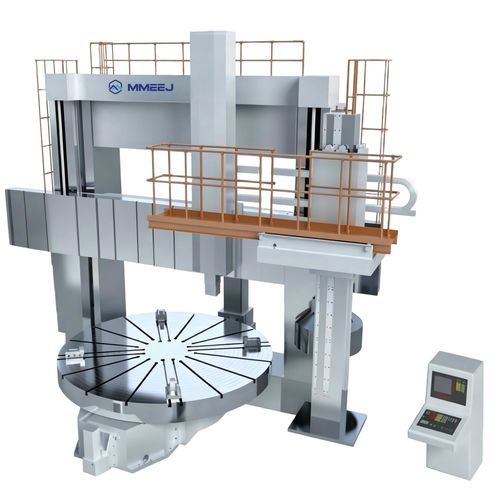

This series is a fully closed-loop three-axis (X, Z, C) CNC vertical turning and milling combined machining center. With turning as the primary tool and milling as the auxiliary, the CNC-controlled machine integrates turning, boring, drilling, grinding and worktable indexing/feed into a single unit. It allows single clamping to complete multiple operations, improving workpiece positioning accuracy and machining efficiency.

Functions

• Turning: inner and outer cylindrical surfaces, end faces, conical surfaces, threading, constant line speed turning.
• Milling: end-face cam milling, radial cam milling and similar contour milling operations.
• Drilling and Boring: worktable arbitrary indexing and positioning for horizontal or vertical holes.
• Grinding: tool holder equipped with a Ø400 grinding wheel head for inner hole and outer diameter grinding.
• Worktable indexing and feed: arbitrary indexing and precise positioning to support multiple processes in one setup.

Applications
Suitable for mechanical manufacturing sectors such as power generation equipment, light industry machinery, large bearing production and general machinery components where combined turning and milling operations are required.

Technical specifications

• Control: Fully closed-loop CNC
• Axes: Three-axis (X, Z, C)
• Machine type: Vertical turning and milling combined machining center
• Primary tool: Turning
• Auxiliary tool: Milling
• Integrated functions: Turning, boring, drilling, grinding, worktable indexing and feed
• Turning capabilities: inner/outer cylindrical surfaces, end faces, conical surfaces, threading, constant line speed turning
• Milling capabilities: end-face cam and radial cam milling
• Drilling/boring: horizontal and vertical holes with arbitrary worktable indexing
• Grinding: Ø400 grinding wheel head for inner and outer grinding
• Operational benefit: single clamping for multiple processes to improve positioning accuracy and machining efficiency
