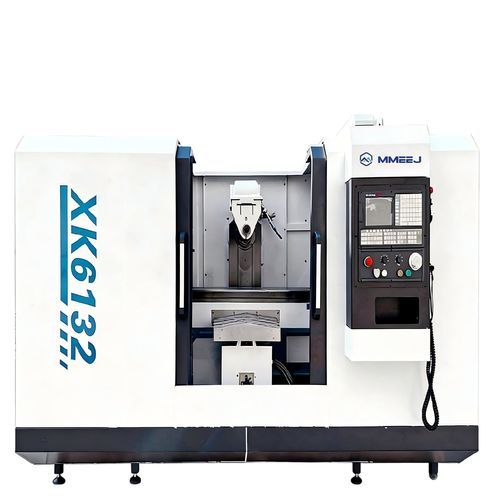

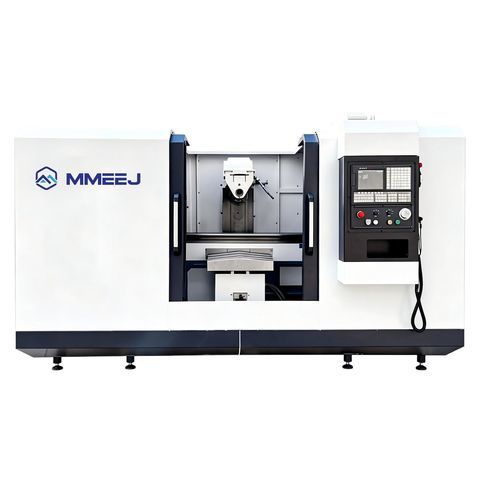

3-axis CNC milling machine XK61 serieshorizontal
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- X travel
900 mm, 1,000 mm
(35.43 in, 39.37 in)- Y travel
310 mm, 330 mm
(12.2 in, 12.99 in)- Z travel
400 mm, 410 mm
(15.75 in, 16.14 in)- Rotational speed
Min.: 30 rpm
(188 rad.min-1)Max.: 1,500 rpm
(9,425 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Table rotation (C axis)
Min.: -45 °
Max.: 45 °
- Work feed X-axis
6,000 mm/min
(3.94 in/s)- Work feed Y-axis
3,000 mm/min, 6,000 mm/min
(1.97 in/s, 3.94 in/s)- Work feed Z-axis
3,000 mm/min, 6,000 mm/min
(1.97 in/s)- Positioning accuracy
0.02 mm, 0.05 mm
(0.00079 in, 0.00197 in)- Repeatability
0.01 mm, 0.025 mm
(0.00039 in, 0.00098 in)- Weight
2,850 kg, 4,250 kg
(6,283.17 lb, 9,369.65 lb)- Overall length
2,272 mm, 3,310 mm
(89.4 in, 130.3 in)- Overall width
1,825 mm, 2,200 mm
(71.9 in, 86.6 in)- Overall height
2,094 mm, 2,394 mm
(82.4 in, 94.3 in)
Description
Standard configuration
Optional configuration
Technical parameters (table)
PARAMETER ITEM | UNIT | XK6132 | XK6140
Size of worktable | mm | 1500x320 | 1700x400
Table travel | mm | 900x310x410 | 1000x330×400
T-groove | mm | 3-14-70 | 3-18-90
Spindle Taper | / | ISO:50/7:24 | ISO:50/7:24
Table rotation angle (optional) | degree | ±45° | ±45°
Distance between spindle end face and table top | mm | 20-370 | 30-410
Bed Vertical Guide to the spindle center line distance | mm | 225-505 | 275-625
Spindle speed range (series) | rpm | 30-1500/18 | 30-1500/18
Fast moving speed (x/y/z) | mm/min | 6000/6000/3000 | 6000/3000/6000
Positioning accuracy | mm | 0.020/300 | 0.05/300
Repeat positioning accuracy | mm | 0.010/300 | 0.025/300
Main drive motor power | kW | 7.5 | 11
Cooling pump motor power | kW | 0.125 | 0.125
External dimensions | mm | 2272x1825×2094 | 3310x2200x2394
Weight of machine | kg | 2850 | 4250
Caractéristiques / spécifications techniques
- Guangtai 130 system
- Three axis CNC
- Manual transmission of spindle
- Electronic oil pump
- Three-axis hard rail
Optional configuration
- System: GSK, KND
- CNC dividing head
- Top tailstock
- Pneumatic broach
- Fully protected sheet metal
Technical parameters (table)
PARAMETER ITEM | UNIT | XK6132 | XK6140
Size of worktable | mm | 1500x320 | 1700x400
Table travel | mm | 900x310x410 | 1000x330×400
T-groove | mm | 3-14-70 | 3-18-90
Spindle Taper | / | ISO:50/7:24 | ISO:50/7:24
Table rotation angle (optional) | degree | ±45° | ±45°
Distance between spindle end face and table top | mm | 20-370 | 30-410
Bed Vertical Guide to the spindle center line distance | mm | 225-505 | 275-625
Spindle speed range (series) | rpm | 30-1500/18 | 30-1500/18
Fast moving speed (x/y/z) | mm/min | 6000/6000/3000 | 6000/3000/6000
Positioning accuracy | mm | 0.020/300 | 0.05/300
Repeat positioning accuracy | mm | 0.010/300 | 0.025/300
Main drive motor power | kW | 7.5 | 11
Cooling pump motor power | kW | 0.125 | 0.125
External dimensions | mm | 2272x1825×2094 | 3310x2200x2394
Weight of machine | kg | 2850 | 4250
Caractéristiques / spécifications techniques
- Models: XK6132 and XK6140 (see parameter differences above)
- Worktable size: XK6132 = 1500x320 mm; XK6140 = 1700x400 mm
- Table travel: XK6132 = 900x310x410 mm; XK6140 = 1000x330×400 mm
- Spindle taper: ISO:50/7:24 (both models)
- Optional table rotation angle: ±45° (both models)
- Spindle end face to table top distance: XK6132 = 20-370 mm; XK6140 = 30-410 mm
- Bed vertical guide to spindle center line distance: XK6132 = 225-505 mm; XK6140 = 275-625 mm
- Spindle speed range: 30-1500/18 rpm (series)
- Fast move speeds (X/Y/Z): XK6132 = 6000/6000/3000 mm/min; XK6140 = 6000/3000/6000 mm/min
- Positioning accuracy: XK6132 = 0.020/300 mm; XK6140 = 0.05/300 mm
- Repeat positioning accuracy: XK6132 = 0.010/300 mm; XK6140 = 0.025/300 mm
- Main drive motor power: XK6132 = 7.5 kW; XK6140 = 11 kW
- Cooling pump motor power: 0.125 kW (both models)
- External dimensions (mm): XK6132 = 2272x1825×2094; XK6140 = 3310x2200x2394
- Machine weight: XK6132 = 2850 kg; XK6140 = 4250 kg
