3-axis milling machine XA61 series
universalwith moving table

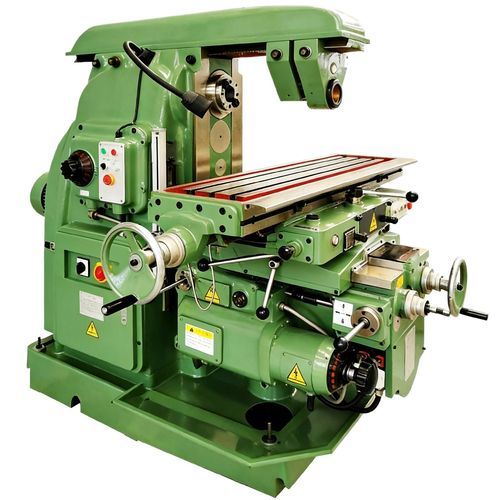

3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table
3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table
3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table - image - 2
3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table - image - 3
3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table - image - 4
3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table - image - 5
3-axis milling machine - XA61 series - Meijin Machinery Equipment (Dalian) Co., Ltd. - universal / with moving table - image - 6
Add to favorites
Compare this product
Go to the Meijin Machinery Equipment (Dalian) Co., Ltd. website for more information

Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
with moving table
X travel

680 mm, 700 mm, 900 mm, 1,100 mm
(26.77 in, 27.56 in, 35.43 in, 43.31 in)

Y travel

240 mm, 255 mm, 300 mm, 315 mm
(9.45 in, 10.04 in, 11.81 in, 12.4 in)

Z travel

360 mm, 380 mm
(14.17 in, 14.96 in)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Spindle speed

Min.: 30 rpm
(188.496 rad.min-1)

Max.: 1,500 rpm
(9,424.778 rad.min-1)

Description

Overview
Universal lifting-table manual horizontal milling machine for machining flat surfaces, grooves and gears. Suitable for mechanical workshops and production departments. Compatible with universal milling head, round table and indexing head to extend machine applications.

Technical data (main parameters)
  • Models: XA6132 and XA6140.
  • Working desk size: XA6132 = 1320×320 (1600×320 optional); XA6140 = 1700×400 (2000×400 optional).
  • Work table T-slot (number-width-spacing): XA6132 = 3-18-70; XA6140 = 3-18-90.
  • Workbench maximum overload: XA6132 = 500 kg; XA6140 = 800 kg.
  • Spindle motor power: XA6132 = 7.5 kW; XA6140 = 11 kW.
  • Spindle speed range: 30–1500 rpm, 18 steps.


Feed and movements
  • Table travel X (longitudinal): XA6132 = 700/680 mm (900 optional); XA6140 = 900/880 mm (1100 optional).
  • Slide travel Y (lateral): XA6132 = 255/240 mm; XA6140 = 315/300 mm.
  • Lifting table Z (vertical): both models = 380/360 mm.
  • Cutting feed rate: X,Y = 23.5–1180 mm/min; Z = 8–394 mm/min.
  • Fast moving speed: X = 2300 mm/min; Y = 2300 mm/min; Z = 770 mm/min.
  • Worktable maximum turning angle: ±45°.
  • Spindle center to table distance: XA6132 = 30–350 mm; XA6140 = 30–410 mm.


Dimensions & weight
  • Overall dimensions (L×W×H): XA6132 = 2294×1770×1665 mm; XA6140 = 2560×2130×1800 mm.
  • Approximate machine weight: XA6132 = 2650 kg; XA6140 = 3850 kg.


Applications & accessories
  • Applications: machining of planes, grooves and gears in general mechanical and industrial workshops.
  • Optional accessories: universal milling head, round table, indexing head to expand machine capabilities.
