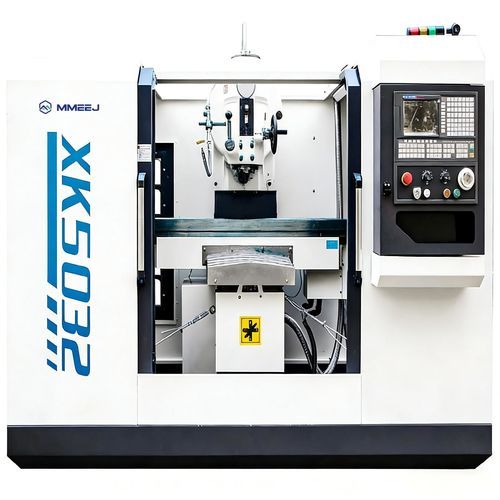

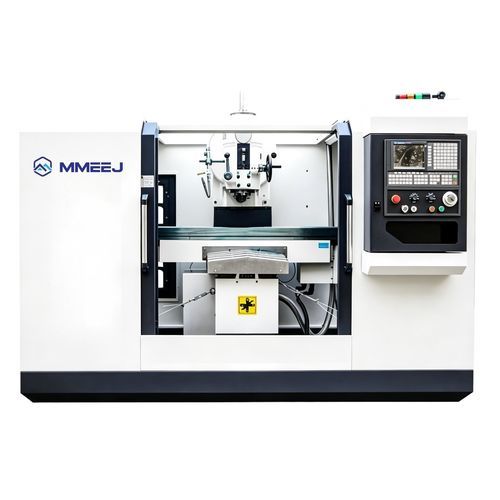

3-axis CNC milling machine XK50 seriesverticalwith rotary table
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- X travel
880 mm, 900 mm
(34.65 in, 35.43 in)- Y travel
300 mm, 310 mm
(11.81 in, 12.2 in)- Z travel
350 mm, 365 mm
(13.78 in, 14.37 in)- Rotational speed
Min.: 30 rpm
(188 rad.min-1)Max.: 1,500 rpm
(9,425 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Table rotation (C axis)
Min.: -45 °
Max.: 45 °
- Work feed X-axis
3,000 mm/min, 6,000 mm/min
(1.97 in/s, 3.94 in/s)- Work feed Y-axis
3,000 mm/min, 6,000 mm/min
(1.97 in/s, 3.94 in/s)- Work feed Z-axis
3,000 mm/min, 6,000 mm/min
(1.97 in/s, 3.94 in/s)- Positioning accuracy
0.025 mm, 0.05 mm
(0.00098 in, 0.00197 in)- Repeatability
0.015 mm, 0.025 mm
(0.00059 in, 0.00098 in)- Weight
3,250 kg, 4,320 kg
(7,165.02 lb, 9,523.97 lb)- Overall length
2,272 mm, 2,556 mm
(89.4 in, 100.6 in)- Overall width
1,825 mm, 2,160 mm
(71.9 in, 85 in)- Overall height
2,094 mm, 2,400 mm
(82.4 in, 94.5 in)
Description
Short description
Optional configuration
Technical parameters
Key features / specifications
- Standard configuration: Guangtai 130 system
- Three-axis CNC with manual spindle transmission
- Electronic oil pump
- Three-axis hardened linear guides
Optional configuration
- Control system: GSK, KND
- CNC dividing head
- Top tailstock
- Pneumatic broaching device
- Full sheet-metal protective enclosure
Technical parameters
- XK5032 — Worktable size: 1500×320 mm; Table travel (X×Y×Z): 900×310×350 mm; T-groove: 3-14-70 mm; Spindle taper: ISO50 (7:24); Optional table rotation angle: ±45°; Spindle-to-table distance: 30–380 mm; Bed guide to spindle center distance: 350 mm; Spindle speed range: 30–1500 rpm (series); Rapid traverse (X/Y/Z): 6000/6000/3000 mm/min; Positioning accuracy: 0.025 mm/300 mm; Repeatability: 0.015 mm/300 mm; Main drive power: 7.5 kW; Cooling pump: 0.125 kW; External dims: 2272×1825×2094 mm; Weight: 3250 kg
- XK5040 — Worktable size: 1700×400 mm; Table travel (X×Y×Z): 880×300×365 mm; T-groove: 3-18-90 mm; Spindle taper: ISO50 (7:24); Optional table rotation angle: ±45°; Spindle-to-table distance: 45–410 mm; Bed guide to spindle center distance: 450 mm; Spindle speed range: 30–1500 rpm (series); Rapid traverse (X/Y/Z): 3000/3000/1500 mm/min; Positioning accuracy: 0.05 mm/300 mm; Repeatability: 0.025 mm/300 mm; Main drive power: 11 kW; Cooling pump: 0.125 kW; External dims: 2556×2160×2400 mm; Weight: 4320 kg
Key features / specifications
- Three-axis vertical CNC milling center designed for heavy-duty component machining
- ISO50 spindle taper for high rigidity and tool compatibility
- Available with Guangtai, GSK or KND control systems
- Optional rotating table and CNC dividing head for indexing and angular machining
- Protective sheet-metal guarding and electronic lubrication suitable for industrial use
