3-axis milling machine XA50 series

vertical

Overview

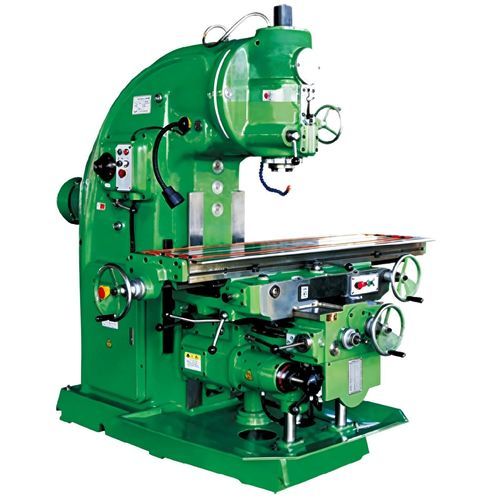

The manual vertical milling machines XA5032 and XA5040 are built for general metalcutting operations in industrial workshops. They provide a vertical spindle with adjustable head angle, manual feed with optional automatic/semi-automatic table movement, and configurations suited to drilling, milling, facing and angled machining.

Construction
Main components — base, column, worktable, middle slide, lifting slide and spindle box — are cast from high-strength materials and undergo artificial aging treatment to ensure long-term dimensional stability and reduced deformation during heavy use. The machines feature precision spindle assemblies and reinforced worktable support.

Technical data

• Working desk size (mm): XA5032 — 1325×320 (1600×320); XA5040 — 1700×400 (2000×400)
• Work table T-slot (number/width/spacing mm): XA5032 — 3-18-70; XA5040 — 3-18-90
• Workbench maximum overload: XA5032 — 500 kg; XA5040 — 800 kg
• Travel X (table longitudinal) Manual/Auto (mm): XA5032 — 700/680; XA5040 — 900/880 (1100 optional)
• Travel Y (side lateral) Manual/Auto (mm): XA5032 — 255/240; XA5040 — 315/300
• Travel Z (lifting table vertical) Manual/Auto (mm): XA5032 — 370/350; XA5040 — 385/300
• Rapid traverse (mm/min): X 2300, Y 1540, Z 770 (both models)
• Spindle bore (mm): 29 (both models)
• Spindle speed range (rpm): 30–1500 (both models), 18 speed steps
• End mill head rotation angle: ±45° (both models)
• Spindle center to table distance (mm): XA5032 — 60–430; XA5040 — 130–515
• Spindle motor power (kW): XA5032 — 7.5; XA5040 — 11
• Dimensions (mm): XA5032 — 2294×1770×1904; XA5040 — 2556×2159×2298
• Approx. weight (kg): XA5032 — 3200; XA5040 — 4250

Applications and options
Suitable for general milling, slotting, facing and angled machining in metalworking shops and production lines. XA5040 offers an optional extended X travel (1100 mm). Accessories and custom configurations (motors, controls, tooling) are available on request; consult the manufacturer or distributor for compatibility and installation details.
