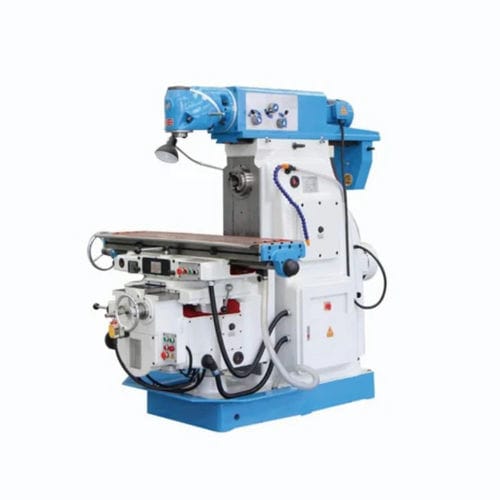

3-axis milling machine XA62 series

universalindustrialhigh-rigidity

Overview
The XA62 series is a universal milling machine with a two-section rotary milling head. The spindle rotates 360° in both vertical and horizontal axes and incorporates a telescopic sleeve for milling at any angle. Vertical/horizontal switching is performed with one click without changing the milling head, providing higher rigidity than a three-section design.

Key specifications

• Model series: XA62 (variants: XA6232, XA6240)
• Spindle taper: ISO (7:24) — XA6232: V: ISO40 / H: ISO50; XA6240: V: ISO40/ISO50 / H: ISO50
• Spindle speed range: Vertical 35–1600 rpm; Horizontal 30–1500 rpm
• Spindle speed steps: Vertical 11 steps; Horizontal 18 steps
• Spindle motor power: XA6232 = 7.5 kW; XA6240 = 11 kW
• Working desk size: XA6232 = 1320×320 mm (option 1600×320); XA6240 = 1700×400 mm (option 2000×400)
• Work table T-slots: XA6232 = 3-18-70; XA6240 = 3-18-90
• Workbench maximum overload: XA6232 = 300 kg; XA6240 = 500 kg
• Travel (manual / maneuver): X - XA6232 700/680 mm (900 optional), XA6240 900/880 mm (1100 optional); Y - XA6232 255/240 mm, XA6240 315/300 mm; Z - both 380/360 mm
• Cutting feed rate: X/Y 23.5–1180 mm/min; Z 8–394 mm/min
• Rapid traverse: X/Y 2300 mm/min; Z 770 mm/min
• Worktable max tilt angle: ±45°; Spindle center to table distance: XA6232 30–350 mm; XA6240 30–410 mm
• Dimensions (W×D×H): XA6232 2294×1770×1665 mm; XA6240 2560×2130×1800 mm
• Approx. weight: XA6232 ≈ 2650 kg; XA6240 ≈ 3850 kg

Applications

• Precision milling of medium and large workpieces
• Angular and oblique milling using telescopic sleeve and 360° head rotation
• Tooling, mold and die machining, components for heavy industry
• Operations requiring quick switch between vertical and horizontal milling

Optional configurations

• Extended table lengths (1600×320 mm, 2000×400 mm options)
• Optional X travel extensions (900 mm / 1100 mm)
• Spindle and accessory options to match specific tooling and CNC integrations
