Steel grating

pressednon-slipfor industrial flooring

Product information
The press-locked grating is the most commonly used grating type across many European markets. Its production method, which differs from press-welded grating, allows a wide range of mesh patterns, bearing bar heights and thicknesses. Combined with multiple material options, press-locked grating can be configured to meet specific application and customer requirements. If required, anti-slip versions are achievable by notching bearing and/or cross bars.

Construction

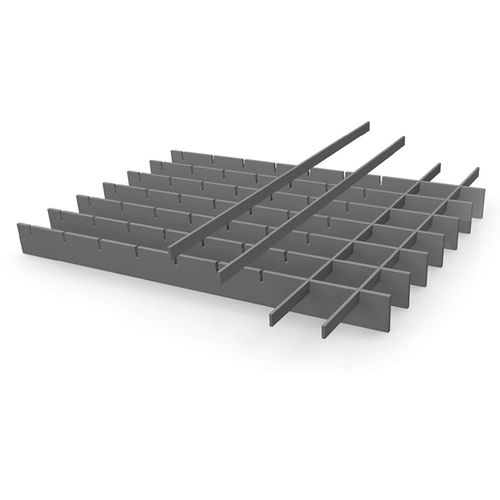

In press-locked grating the cross bars (typically cold-rolled flat steel) are pressed into pre-punched bearing bars. Perimeter frames are supplied as T-profiles or flat sections and are attached by resistance welding. Opposing end meshes are generally equal, but custom mesh layouts and edge details are possible to suit structural or architectural needs.

Technical data
Common mesh spacing for bearing bars from 2 to 3 mm
Bearing bar | Cross bar columns
Rows:
11,1 | 11,1, 16,65, -, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
21 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
22,2 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
33,3 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
44,4 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
55,5 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
66,6 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
99,9 | 11,1, 16,65, 21,0, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9

Common mesh spacing for bearing bars from 4 to 5 mm
Bearing bar | Cross bar columns
Rows:
21 | 16,65, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
25 | 16,65, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
33,3 | 16,65, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
50 | 16,65, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
66,6 | 16,65, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9
99,9 | 16,65, 22,2, 33,3, 44,4, 49,95, 66,6, 99,9

Standard bearing bar profiles
Bearing bar 2 mm / Bearing bar 3 mm / Bearing bar 4 mm / Bearing bar 5 mm
Rows:
20/2 | 20/3 | - | -
25/2 | 25/3 | 25/4 | 25/5
30/2 | 30/3 | 30/4 | 30/5
35/2 | 35/3 | 35/4 | 35/5
40/2 | 40/3 | 40/4 | 40/5
45/2 | 45/3 | 45/4 | 45/5
50/2 | 50/3 | 50/4 | 50/5
- | 60/3 | 60/4 | 60/5
- | 70/3 | 70/4 | 70/5
- | 80/3 | 80/4 | 80/5
- | 90/3 | 90/4 | 90/5
- | 100/3 | 100/4 | 100/5
- | - | - | 110/5
- | - | - | 120/5
- | - | - | 130/5
- | - | - | 140/5
- | - | - | 150/5
- | - | - | 160/5
- | - | - | 170/5

Accessories / fixings

• Double B clamp: 2 upper clamps, 1 lower clamp, 2 hex screws and 2 square nuts.
• Perforated welded plates: plates welded to specification; fasteners supplied by customer; pattern and position per load requirements.
• Bolt-and-plate fixing: bolt with retaining flange; special versions for highly corrosive environments available.
• Joint connector: upper and lower threaded parts with Allen screw (for flat frames).
• Hilti clamp: upper and lower parts joined; high vibration resistance; single-person installation.
• Clamp B / B10 / S / safety clamps A/D: other common clamp variants for different mounting needs.

Characteristics / technical specifications

• Type: press-locked grating (cross bars pressed into pre-punched bearing bars).
• Mesh variants: wide range of standard meshes and custom combinations (see tables above).
• Bearing bar thicknesses: standard profiles available in 2, 3, 4 and 5 mm.
• Frame: T-profile or flat section; attachment by resistance welding.
• Anti-slip option: notched bearing and/or cross bars available.
• Materials: various steel grades and surface finishes selectable by application.
• Manufacturing: press technique allowing high flexibility in mesh, height and thickness configurations.
• Typical applications: walkways, platforms, stair treads, parking decks, bridges, industrial flooring and architectural installations.
