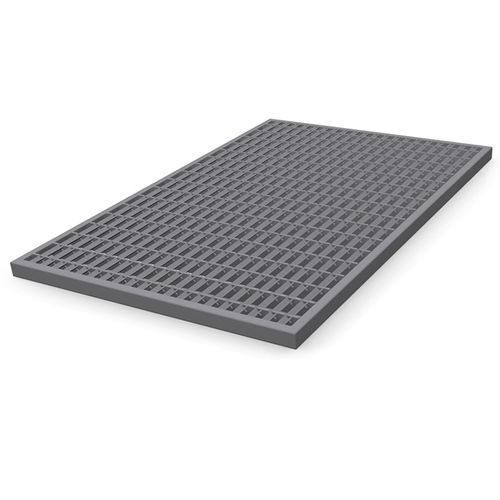

Galvanised steel grating

metalrectangular meshpressed

Product information
The MEISER patent grating is manufactured using a patented punch-press connection and framed with a V-profile. V-shaped cross bars provide high rigidity and a pronounced scraping effect. The patent grating is primarily used as a high-quality boot scraper and as an extremely stable, load-resistant light well grating. A suitable angle frame with punched wall anchors is available on request. The patent grating is produced exclusively by MEISER.

Technical data
Mesh width | Grating height | Bearing bar
31/24 mm | 20 mm | 2 mm

Accessories / Fixing clips

• Clamp S: Consisting of a flat head screw, clamp lower part and square nut.

Characteristics / Technical specifications

• Production method: patented punch-press connection
• Cross-section: V-shaped cross bars
• Finish: hot-dip galvanised
• Primary applications: boot scraper and light well grating
• Option: suitable angle frame with punched wall anchors (available on request)
• Accessory example: Clamp S — flat head screw, clamp lower part and square nut
• Mesh width: 31/24 mm
• Grating height: 20 mm
• Bearing bar thickness: 2 mm
• Produced exclusively by MEISER
