Product information

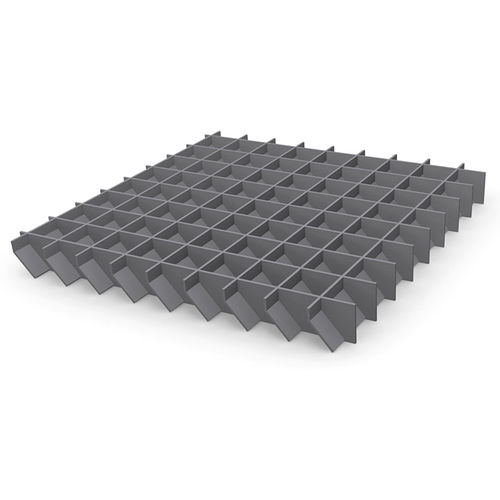

This special full press-locked louvre grating combines the structural advantages of press-locked and full gratings with the louvre appearance. The angle of the cross bars is freely selectable. The bearing bar punch depth is only 10 mm, improving load-bearing capacity. Available materials: steel, aluminium, stainless steel. Notching of bearing bars is possible to increase slip resistance. Maximum producible cross bar length: 1,250 mm. Suitable for facade cladding, crossovers and walkway coverings.

Technical data — Common mesh spacing
Bearing bar | Cross bar spacings
22.2 | 22.2; 33.3; 44.4; 66.6
33.3 | 22.2; 33.3; 44.4; 66.6
44.4 | 22.2; 33.3; 44.4; 66.6
66.6 | 22.2; 33.3; 44.4; 66.6
99.9 | 22.2; 33.3; 44.4; 66.6

Standard bearing bar profiles
Bearing bar 2 mm | Bearing bar 3 mm
25/2 | 25/3
30/2 | 30/3
35/2 | 35/3
40/2 | 40/3
45/2 | 45/3
50/2 | 50/3

Accessories / Fixing clips

• Welded-in holed fixing plates: Consisting of a welded-in holed plate; hole size and arrangement per customer specification; screws supplied by the customer.
• Clamp B: Consisting of saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.

Applications / Technical specifications

• Materials: steel, aluminium, stainless steel
• Bearing bar punch depth: 10 mm
• Cross bar maximum producible length: 1,250 mm
• Angle of cross bars: freely selectable
• Notching option on bearing bars for increased slip resistance
• Recommended applications: facade cladding, crossover, walkway covering
