Metal grating

welded

Product information

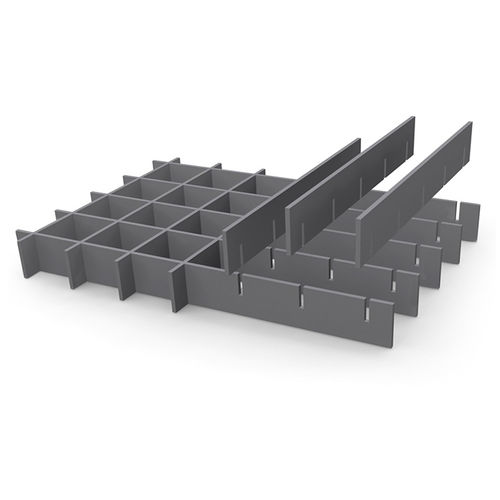

Full grating is named because the bearing bars and cross bars share the same cross-section and therefore the same height. A bearing bar is supported at both ends and its underside is not slotted. Compared with standard press-locked grating, full grating provides improved screening and a refined appearance.

Technical data
Common mesh spacing for bearing bars from 2 to 3 mm
Bearing bar | Cross bar columns
22,2 | 16,65 | 22,2 | - | 44,4 | 66,6
33,3 | 16,65 | 22,2 | 33,3 | - | 66,6
44,4 | 16,65 | 22,2 | - | 44,4 | -
66,6 | 16,65 | 22,2 | 33,3 | - | 66,6

Common mesh spacing for bearing bars from 5 mm
Bearing bar | Cross bar columns
33,3 | 16,65 | 33,3 | 66,6 | 99,9
66,6 | 16,65 | 33,3 | 66,6 | -
99,9 | 16,65 | 33,3 | - | 99,9

Standard bearing bar profiles
Bearing bar 2 mm | Bearing bar 3 mm | Bearing bar 5 mm
25/2 | 25/3 | -
30/2 | 30/3 | 30/5
35/2 | 35/3 | 35/5
40/2 | 40/3 | 40/5
45/2 | 45/3 | 45/5
50/2 | 50/3 | 50/5
- | 60/3 | 60/5
- | 70/3 | 70/5
- | 80/3 | -
- | 90/3 | -
- | 100/3 | -

Accessories / Fixing clips

• Welded-in holed fixing plates: Welded-in perforated plate; hole size and layout per customer specification; screws provided by customer.
• Grating heald bolt fastener: Head bolt with retaining flange; available in special versions for highly corrosive environments (e.g. X-BT) and in pre-mounted X-GR RU version.
• Hilti clamp: Saddle top clip and lower part connected; high resistance to vibration, installable by one person for reduced installation time.
• Clamp B: Saddle top clip, clamp lower part, M8x60 hexagon screw and M8 square nut.
• Safety clamp A: Safety upper part, clamp lower part, hexagon screw and square nut.
• Safety clamp D: Safety upper part, clamp lower part, hexagon screw and square nut.

Applications / References (examples)

• Logistics centres and warehouses
• Museums and public buildings
• Sports halls and schools
• Architectural and industrial projects

Technical specifications

• Bearing and cross bars have identical cross-section and height.
• Bearing bar: supported at both ends; underside not slotted.
• Improved visual screening compared with press-locked grating.
• Standard mesh spacings and cross bar combinations as listed above (bearing bar spacings 2–3 mm and 5 mm).
• Available bearing bar profiles: 25/2, 25/3, 30/2, 30/3, 30/5, 35/2, 35/3, 35/5, 40/2, 40/3, 40/5, 45/2, 45/3, 45/5, 50/2, 50/3, 50/5, 60/3, 60/5, 70/3, 70/5, 80/3, 90/3, 100/3.
