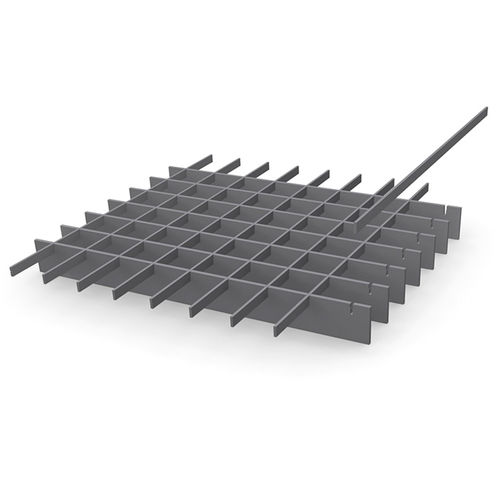

Rectangular mesh grating

pressedsquare mesh

Product information
MEISER developed the Ultra Grating as a press-locked grating alternative to conventional press-welded and electrowelded mats. A special press-locked joining technique ensures a secure connection between bearing and cross bars; optional spot welding is available. The design minimises the risk of cross bars loosening during sawing, making the Ultra Grating particularly suitable for cut-to-size and further processing operations. Mats are supplied trimmed and stocked in various mesh spacings and sizes. The cross bar side can be edged on request.

Technical data
Common mesh spacing
Bearing bar | Cross bar
33,3 | 33,3 ; 66,6 ; 99,9
66,6 | 33,3 ; 66,6 ; 99,9

Standard bearing bar profiles
Bearing bar 2 mm | Bearing bar 3 mm
25/2 | 25/3
30/2 | 30/3
35/2 | 35/3
40/2 | 40/3

Accessories / Fixings

• Double clamp B — Consisting of 2 saddle top clips, clamp lower part, 2 hexagon screws and 2 square nuts.
• Grating heald bolt fastener — Consisting of head bolts and retaining flange; for highly corrosive environments (e.g. offshore) also available as X-BT; pre-mounted version X-GR RU.
• Grating butt joint — Comprising top and base with thread and allen screw.
• Hilti clamp — Consisting of saddle top clip and lower part connected to one another; high resistance to vibrations, easy handling by one person and significantly shorter installation times.
• Clamp B — Consisting of a saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.
• Clamp B 10 — Consisting of a stirrup top clip, hexagon socket screw, clip lower part and nut.
• Clamp S — Consisting of a flat head screw, clamp lower part and square nut.
• Safety clamp A — Consisting of safety upper part, clamp lower part, hexagon screw and square nut.
• Safety clamp D — Consisting of safety upper part, clamp lower part, hexagon screw and square nut.

Characteristics / technical specifications

• Product type: Press-locked grating mat (Ultra Grating)
• Joining technology: Special press-locked joining between bearing and cross bars; optional spot welding
• Suitability: Designed for cut-to-size companies and further processing (reduced risk of loose cross bars during sawing)
• Maximum cross bar length: up to 1,500 mm
• Supply: Mats trimmed; stocked in various mesh spacings and sizes
• Mesh spacing (common): Bearing bar 33,3 mm with cross bars 33,3 / 66,6 / 99,9 mm; Bearing bar 66,6 mm with cross bars 33,3 / 66,6 / 99,9 mm
• Standard bearing bar profiles: 25/2, 30/2, 35/2, 40/2 (2 mm) and 25/3, 30/3, 35/3, 40/3 (3 mm)
• Edge option: Cross bar side can be edged upon request
• Accessories: Multiple fixing clips and clamps available (Double clamp B, Grating heald bolt fastener, Grating butt joint, Hilti clamp, Clamp B, Clamp B 10, Clamp S, Safety clamp A/D)
