Circular saw COBRA 352 NC 5.0
for aluminumCNCsemi-automatic

circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
Add to favorites
Compare this product


Characteristics

Technology
circular
Treated material
for aluminum
Other characteristics
CNC, semi-automatic
Circular saw blade diameter

350 mm (14 in)

Round piece diameter

Min.: 0 mm (0 in)

Max.: 120 mm (5 in)

Description

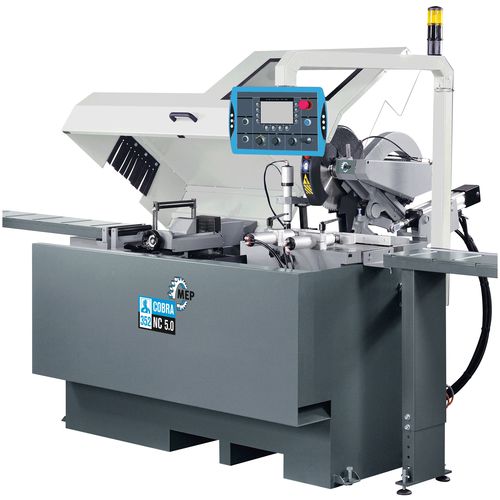

COBRA 352 NC 5.0, automatic/semi-automatic electropneumatic CNC sawing machine to cut aluminium and light alloys using blade with electrowelded hard-metal plates (HM). - The machine cuts from -45° to +45° and the head tilts from 0° to +45° so as to make inclined cuts. - CNC machine with a new controller: MEP 50 with Windows “CE” based. This new PLC has been specifically designed by MEP for the automation of its range of products. - Console with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY. -7” touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive , it guarantees a reliable use and it controls all cutting parameters in real time. - Registration of alarms and events with the possibility to visualize the story of occurred events. - Cutting head and feeding vice positioning with joystick. - Automatic acquisition of the actual starting point of the cut. - Rotating table mounted on bearing for a smooth and precise rotation. - Material is clamped by means of two pneumatic vices which can be freely positioned along the longitudinal axis of the material. - Adjustable mechanical stops at 0° and 45° left/right to position the head quickly. - Shearing stress control. - Pneumatic vertical vice.
