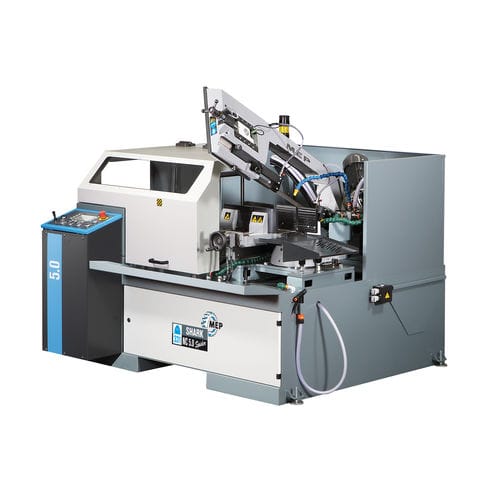

Band saw SHARK 331-1 NC 5.0 SPIDER
miterfor metalsfor profiles

band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band, miter
Treated material
for metals
Applications
for profiles, for pipe, for bars
Other characteristics
compact, automatic, semi-automatic, with cooling system, CE, manual actuation, single-blade, carbide blade, swivel, machining, variable-speed, with touch screen control, inverter, electro-hydraulic, with motorized head, single-head, with automatic feeder, PLC-controlled, multipurpose, traveling-head, programmable, with automatic loading
Round piece diameter

160 mm, 240 mm, 300 mm
(6 in, 9 in, 12 in)

Description

SHARK 331-1 NC 5.0 spider, Electrohydraulic automatic band sawing machine which can also operate in semi-automatic cycle for cuts from 0° up to 60° left. Machine with compact dimensions. CNC machine with a new controller: MEP 50 with Windows “CE” based. This new PLC has been specifically designed by MEP for the automation of its range of products. A FEW FEATURES: – 7” touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive, it guarantees a reliable use and it controls all cutting parameters in real time. – Console with all centralized controls, installed on a fixed pedestal in order that the operator can operate all programming and operating functions completely safe. – Visualization and registration of alarms and events with the possibility to visualize the story of occurred events. – Electronic inverter for the continuous adjustment of the band speed from 15 to 100 m/min. – Latest generation hydraulic control unit, with high efficiency and low energy consumption. – Bar feeder with recirculating balls screw/nut and stepper motor (feed in length in one stroke 600 mm, that can be repeated in order to cut any length). – Feeding vice cover with safety limit switch in case the operator opens the cover during the cutting cycle. – Cutting head and feeding vice positioning with joystick. – Automatic acquisition of the actual starting point of the cut. – Electronic transducer to visualize band tensioning.
