Band saw SHARK 660 CNC HS 4.0
for steelhorizontaldouble-column

band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product

Characteristics

Technology
band
Treated material
for steel
Other characteristics
horizontal, double-column, automatic
Round piece diameter

Max.: 660 mm (26 in)

Min.: 0 mm (0 in)

Description

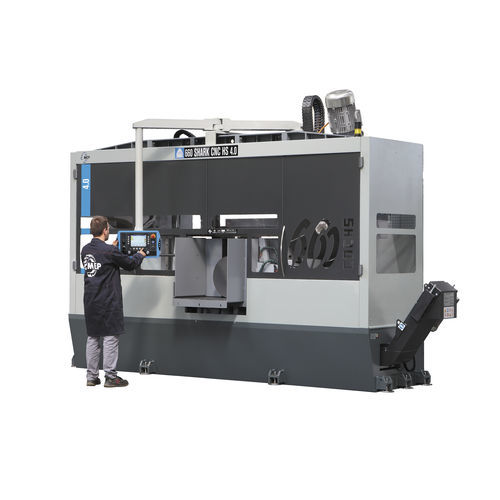

Shark 660 CNC HS 4.0, automatic double-column bandsaw for 0° cuts on structural, stainless, alloy steels, profiles ,solid parts and profiles with dimensions up to 660x660mm. - This sawing machine also features a semiautomatic cutting cycle and uses latest generation technologies; Shark 660 CNC HS 4.0 is equipped with a NEW controller with processor RISC 32 bit 200 MHz with integrated interface. - 8” touch screen display operator interface - Automatic acquisition of the actual starting point of the cut. - CNC machine to store up to 300 cutting programs each with different quantity and length. - Structure in sturdy cast iron, to absorb vibrations and give the machine a better cutting stability and longer blade life. - Hydraulic power pack to supply the feeding vices, cutting vices and carbide pads. - Infinitely adjustable cutting speed from 15 to 200 m/min by vector inverter. - Self-aligning feeder vice unit for feeding even strained bars. - Rest piece that can no longer be in-feeded automatically by feeder: 70mm. - Control panel, with and adjustable frame, assembled on a rotating arm. - Automatic adjustment of the front blade-guide head according to the dimensions of the bars to be cut. - Blade deviation device. - Laser projector to position the bar accurately to carry out non-standard or facing cuts. - Band rotation control with stop in real time in case of blade jammed. - Electro-mechanical servo-system for the blade dynamic tensioning. - Coolant tank incorporated in the base. - Powered blade brush. - Chip conveyor.
