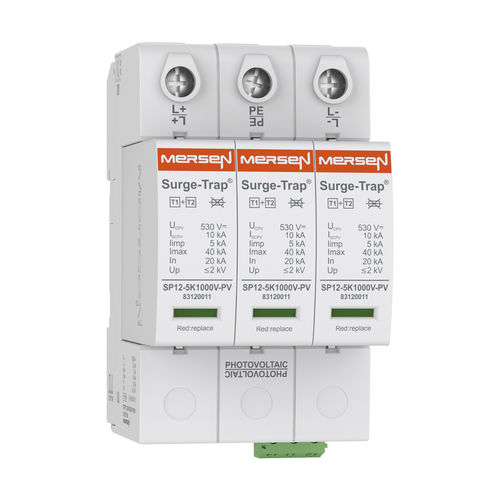

Photovoltaïc installation surge protector Surge-Trap® series

type 2type 1combined

EN 61643-31 UL 1449 5th Ed. IEC 61643-31 Surge-Trap® Pluggable STPT12 Series - YPV is the PHOTOVOLTAIC range of combined Type 1+2/Class I+II devices intended for discharging lightning currents (10/350 μs) and protecting against induced voltage surges (8/20 μs), in accordance with IEC/EN 61643-31 standards. DIN rail plug-in format. Key features & benefits Lightning impulse current (10/350 μs): 5 kA Maximum discharge current (8/20 μs): 40 kA Nominal discharge current (8/20 μs): 20 kA Ucpv: 1060 Vdc and 1500 Vdc Iscpv: 10 kA (EN 50539-11), no back-up fuse required in PV Plug-in DIN rail format Visual and remote end of life indication Reversible chassis to allow cable entry from above or below Mechanically coded cartridges to avoid replacement errors Dynamic thermal disconnection system with high breaking capacity, optimised for DC voltages. Applications Photovoltaic and BESS Building
