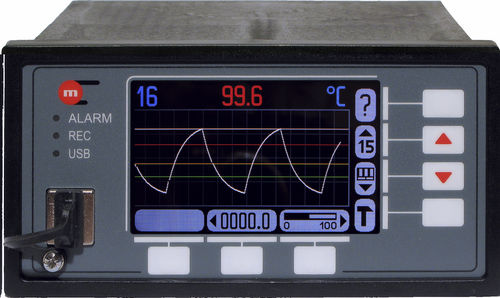

Temperature data-logger MPI-Cflowlevelhumidity

temperature data-logger
temperature data-logger
temperature data-logger
temperature data-logger
Add to favorites
Compare this product
indicative price

Characteristics

Measured quantity
flow, level, humidity, pressure, universal, temperature
Connector type
RS-485, Ethernet, USB, LAN WLAN
Display
with LCD graphic display
Applications
storage, for Pt100 probe
Other characteristics
IP54, electronic, multifunction, multi-channel, programmable

Description

Data logger with 2GB internal flash memory. 16 or 8 analog channels, 4 or 2 digital channels, 16 math channels. Direct connection of temperature sensors, transducers with 4-20mA current loop output, transducers with -0.8V ... +0.8V voltage output or transducers with 0 Ω ÷ 5 kΩ resistance output. ● 16 or 8 universal analog inputs, interaction with: ◦ RTD sensors: Pt100, Pt1000, Ni100, ◦ TC sensors - type J, L, K, T, U, E, N, B, R and S, ◦ transducers with 4-20mA / 0-20mA current loop output, ◦ transducers with 0 ÷ 5000 Ω resistance output, ◦ transducers with -0,8 V ÷ +0,8 V voltage output. ● 4 or 2 binary inputs with measurement of frequencies within the 0,001 Hz ÷ 10 kHz range. ● Galvanically separated beetwen channels and form supply voltage. ● 16 calculation channels, values can be calculated as the functions of measurement results. ● Two totalizers per flow value (measured or calculated). ● 8 semiconducting output relays for alarm or control functions. ● Colour graphic LCD TFT display 70 mm x 42 mm (300 x 240 p.) with backlight. ● Communication with a master system (computer or PLC) by means of RS485 port, ASCII character-oriented or Modbus RTU. ● Communication with a master system (computer or PLC) by means of Ethernet port, Modbus TCP protocol, www server. ● USB port on face plate (IP54). ● Settings are enterned via keyboard or by uploading a file from USB flash drive (the file can be saved in advance on the same or another device). ● Cold junction temperature compensation TC any other temperature measuring channel or a constant value.
