Adaptable handle POGOSTICK

hooklargeadjustable

Product overview

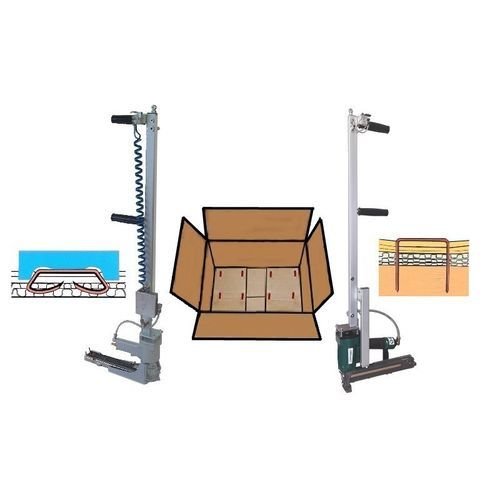

The POGOSTICK is a long handle extension with a holding bar and double grip for pneumatic blind staplers TOP SP P and TACKER. It features a pneumatic trigger and allows insertion of the stapler from above into oversized cartons for blind stapling.

Application range

• POGOSTICK TOP SP P: bottom closure of large cartons made of double or thin triple corrugated board; blind stapling without clinching anvils — the specially preformed TOP staple is automatically clinched within the lower cardboard layer.
• POGOSTICK TACKER N 23 P: fastening heavy cardboard onto wood; also suitable for roofing felt, insulation boards and similar materials.
• Typical applications: carton manufacturing, building and carpentry work, wooden case production, roofing.

Technical description

• Long handle with double grip
• Staple triggering on upper grip (pneumatic)
• Suspension eye for balancer hook
• Adapter plate adjustable to fit TOP or TACKER units
• Dimensions: 1000 x 230 x 75 mm
• Weight: 2.3 kg (plus weight of TOP or TACKER)

Technical specifications

• Version: pneumatic
• Air pressure: 5.5–8 bar
• Device dimensions (L x W x H): 1000 x 230 x 75 mm
• Weight: 2.3 kg
• Compatible staplers: TOP SP P (blind stapler), TACKER N 23 P
• Staple dimensions: not specified
• Load capacity: not specified
