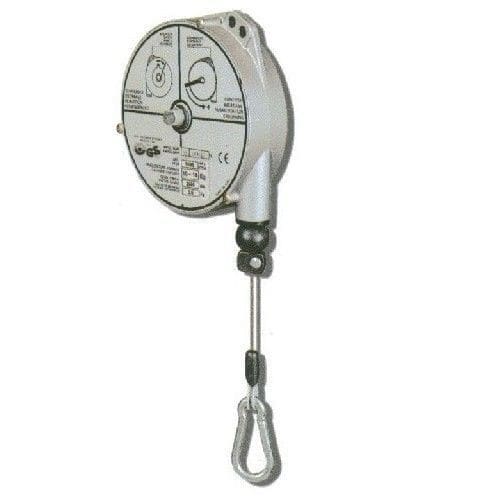

Suspension balancer B 6/8

for pneumatic tools

Product name
B 6/8 - Balancer (weight compensator for 6 - 8 kg)

Application range
For ergonomic suspension of pneumatic staplers used to close filled cartons. Unit should be suspended above the packaging station to reduce operator fatigue and facilitate handling. Suitable for tool weights 6 - 8 kg (compatible with JUMBO M 28, M 32 and M 38).

Technical description
B 6/8 balancer (weight compensator 9338), suspension length 2.5 m
Device dimensions (L x W x H): 381 x 180 x 92 mm
Weight: 3.5 kg
Version: mechanical
Equipped with a swivel load hook.

Available accessories

• DS 75 — Compressed air spiral hose, extended length 4 m
• SCHWENK 20 W — Swivel arm for wall mounting, length 2.0 m
• SCHWENK 30 W — Swivel arm for wall mounting, length 3.0 m
• SCHWENK 10 T — Swivel arm for table mounting, length 1.0 m, height 1800 mm
• SCHWENK 20 T — Swivel arm for table mounting, length 2.0 m, height 1800 mm

Notes
Designed as a weight compensator for ergonomic suspension of pneumatic staplers in packaging and closing operations. Mounting above the work station improves handling and extends tool service life.

Technical specifications

• Model: B 6/8 (weight compensator 9338)
• Intended tool weight range: 6 - 8 kg
• Suspension length: 2.5 m
• Device dimensions (L x W x H): 381 x 180 x 92 mm
• Weight: 3.5 kg
• Version: mechanical
• Air pressure: — (not applicable / not specified)
• Air consumption per stapling at 6 bar: — (not specified)
