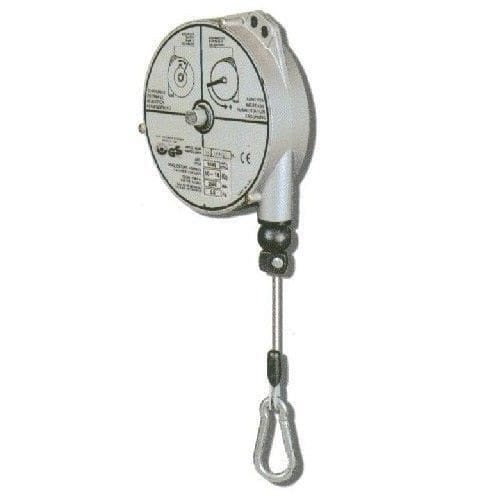

Suspension balancer B 2/4

for pneumatic toolsfor hand toolshose

Product name
Balancer B 2/4 — weight compensator for 2–4 kg tools, 2.5 m cable, mechanical.

Application range
Pneumatic blind staplers (TOP series) and other staplers used to close filled cartons, as well as stapling pliers, should be suspended above the packaging station on a balancer. Suspension provides improved ergonomics for the operator and reduces tool wear.

Compatible tools (2–4 kg)

• Blind Stapler: TOP SP P, MEROLOCK 3, MEPA 18 + 22 P, MERO 18 + 22 P
• Plier: 130/1916 P, 130/1916 PU + PUX

Technical description

• B 2/4 Balancer (weight compensator ref. 9336), cable length 2.5 m
• Device dimensions (L × W × H): 381 × 180 × 92 mm
• Weight: 2.9 kg
• Version: mechanical

Available accessories

• DS 75 — compressed air spiral hose, extended length 4 m
• Swivel arm system for wall mounting: SCHWENK 20 W (2.0 m)
• Swivel arm system for wall mounting: SCHWENK 30 W (3.0 m)
• Swivel arm system for table mounting: SCHWENK 10 T (1.0 m, height 1800 mm)
• Swivel arm system for table mounting: SCHWENK 20 T (2.0 m, height 1800 mm)

Notes
Suspending the stapler at the workstation improves operator comfort and significantly extends tool lifetime. The balancer is equipped with a rotating load hook (carabiner).

Technical specifications

• Version: mechanical
• Matched tool weight range: 2–4 kg
• Balancer / weight compensator reference: 9336
• Cable length: 2.5 m
• Device dimensions (L × W × H): 381 × 180 × 92 mm
• Weight: 2.9 kg
• Air pressure: not specified
• Air consumption per stapling at 6 bar: not specified
