Equipment support arm system SCHWENK 20 T

for medium loads

Product
Swivel arm system for table mounting, arm length 2.0 m, designed to support pneumatic staplers and accessories while providing integrated compressed air supply via a spiral hose. The system keeps the tool within a semicircular working range, ensuring the stapler is always at hand for efficient operator handling.

Application range
Intended for suspending pneumatic blind staplers and stapling pliers above packaging stations or workbenches. For table mounting the vertical profile is fixed on an angle directly at the workstation; for wall mounting the profile can be fixed using two angles. The vertical and horizontal profiles ensure load capacity across the full outreach.

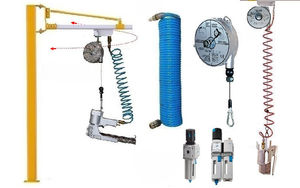

Accessories available

• DS 75 — compressed air spiral hose
• B 2/4 and B 6/8 — balancers (adjustable weight compensators)

Technical description
• SCHWENK 20 T: Swivel arm system for table mounting, arm length 2.0 m
• Height: 1800 mm
• Load capacity: 35 kg
• Profile: 40 x 40 x 2.5

Variants and related models
SCHWENK 10 T (arm 1.0 m); SCHWENK 20 W and SCHWENK 30 W (wall mounting, 2.0 m and 3.0 m).

Technical specifications

• Model: SCHWENK 20 T
• Version: pneumatic / compatible with pneumatic staplers
• Arm length: 2.0 m
• Height: 1800 mm
• Load capacity: 35 kg
• Profile dimensions: 40 x 40 x 2.5
• Air supply: integration for pneumatic tools (use DS 75 spiral hose)
• Air consumption per stapling at 6 bar: see stapler
• Weight: not specified
