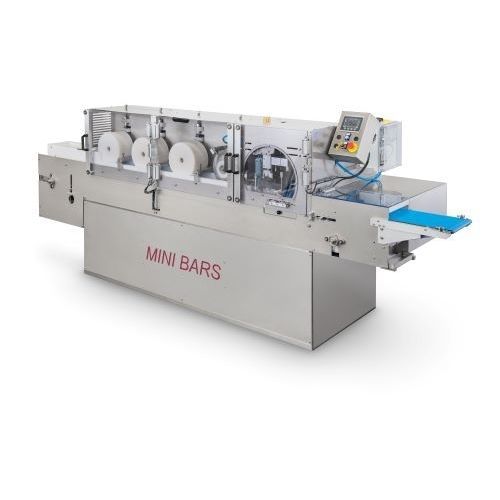

1-way lamination line MINI BARS 130

This is the mini version of the large-scale automated lines for the production of bars measuring less than four meters in length that can also be installed in R&D laboratories. PRODUCTION CAPACITY up to 60 bars/min. POWER CONSUMPTION 6 Kw three-phase 400V 50 Hz (machine available with different voltage) overall dimensions Width 800 mm, Length 3900 mm, Height 1500 mm. weight 800 Kg The MINI BARS 130 line for the automatic production of cereal, energy and protein bars, etc. producing up to 60 bars/min. This is the mini version of the large-scale automated lines for the production of bars measuring less than four meters in length that can also be installed in R&D laboratories. The machine is made entirely of AISI 304 stainless steel and includes the following features: PTFE Teflon loading hopper No. 3 adjustable lamination rollers Longitudinal cutting unit with circular blades Ultrasonic transverse cutting unit Bar separator belt on output HMI operator panel for managing the work cycle with the possibility of storing recipes and remote connection (optional). N.B. A compressed air connection is required with a flow rate of about 150-200 liters/minute and minimum pressure of 6 bar.
