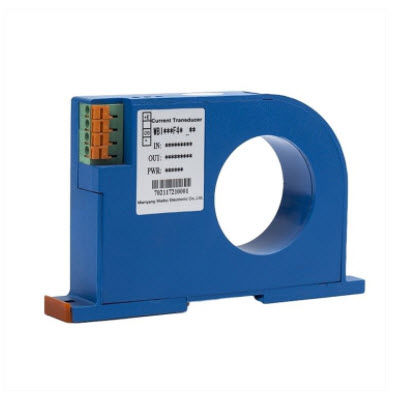

AC voltage transducer WBI414F23

WBI414F23(AC Current Transducer 500A) converts AC input current into output signal DC 4-20mA. It has adopted electromagnetic isolation principle for real time measurement of AC current from electric net or electric circuit. Applications: AC power distribution system: such as power distribution cabinet, railway power supply; Signal monitoring: such as AC current monitoring for filament relay, input signal monitoring for motor, etc. Advantages: Total galvanic isolation between input/output, High accuracy, Low drifting by temperature, Wide temperature bearable range. Caution: 1. Pay attention to the auxiliary power information, especially the auxiliary power grade, and polarity, other wise will damage the product. 2. Pay attention to the wire connection; wrong terminal connection will cause malfunction of the product and even damage the product; 3. There is no lightening strike prevention circuit design in this product. For out door and hazardous environment using, please add protective alternatives.
