Plate thickness gauge thicknessGAUGE 3D

foilfor conveyor beltscoating

Overview

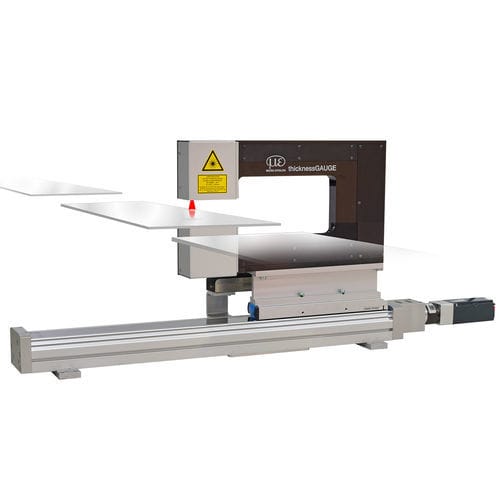

The thicknessGAUGE 3D is a sensor system for inline profile evaluation and 3D thickness measurement of strip and sheet materials. The system pairs a rigid frame with two red-laser profile scanners to capture upper and lower surface profiles and to generate individual profiles as well as combined 3D point clouds for automated analysis.

Application
Inline measurement of coating edges, weld seams, strand profiles and thickness monitoring on production lines.

Key features

• Sensor type: laser line profile sensors (red laser)
• Simultaneous capture of upper and lower surface profiles
• Inline 2D profile evaluation and combined 3D point cloud generation
• Electromechanical axis for flexible positioning (measuring / parking positions)
• Automatic calibration for stable precision
• Delivered assembled and factory-aligned

Installation and calibration
The system is supplied mounted and factory-calibrated. It can be moved between parking and measuring positions; the parking position enables sensor protection and fully automatic recalibration.

Software and computation
Measurements and calculations are automated via configuration files. Optional 3DInspect software allows creation and management of configuration files, selection of measurement parameters and target geometries, point cloud alignment and filtering, region selection and combined analysis workflows.

Technical specifications

• Measuring range (thickness): 15 mm
• Measuring range (profile): max. 26.8 mm
• Thickness resolution: 0.2 µm
• Profile resolution: 1,024 points
• Accuracy: ± 1.2 µm
• Measuring rate: 500 Hz
• Sensors: laser profile sensors (red laser)
• Positioning: electromechanical axis (flexible)
• Calibration: automatic calibration
