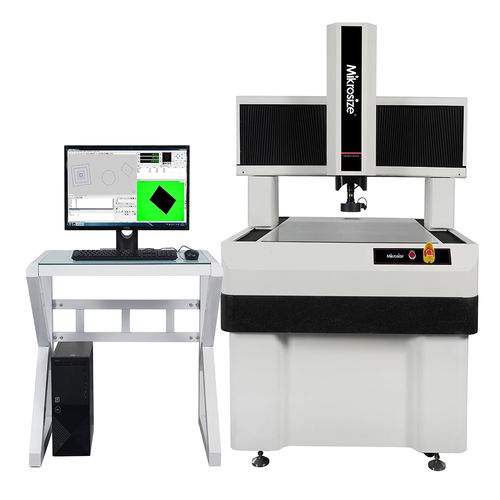

Video measuring system VMG

shapepositioncolor

● Moving gantry structure,measuring specimen fixed on stage ● CNC fully auto close loop control, auto measurement; ● Precise “00” grade “JINANQING” marble base and pillar ensures corrosion resistant,and working stability. ● Automatic zoom lens with electronic position, easily to change magnification. ● CNC fully automatic precisely control X-Y-Z-axis movements. ● Linear scale, resolution is 0.5um, high accuracy, great stability; ● Precise linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position; ● Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently; ● Microsize measuring software, with fast focus, auto Edge finding, diverse reports output. SPC data analysis on line. Auto measuring can be set. ● High definition color industry camera, ensure clear observation and stable measurement requirement; ●It is widely used in machinery manufacturing, electronics, automobile, hardware, plastic,mold and other industries. ●It can accurately measuring workpiece size,shape,position tolerance, so as to complete the tasks of components inspection, shape measurement, process control and so on.
