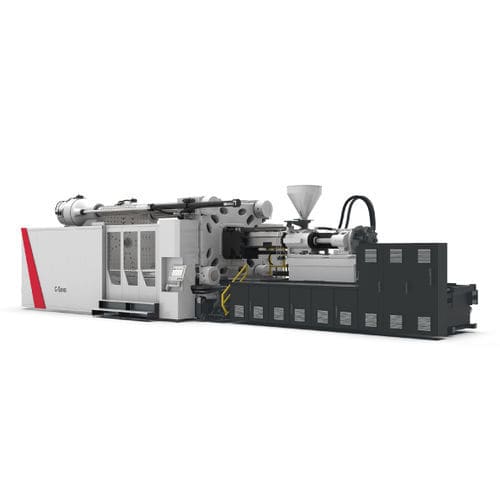

Horizontal injection molding machine C series

hydraulic

Introducing the next generation of Milacron Innovation. The Cincinnati product line expands on our industry leading big machine technology with a platform that adds additional machine sizes, improved performance and reliability. Powered and driven by the improved and highly reliable Fanuc servo motor power pack, the Cincinnati series provides higher max mold weights, shorter footprint, faster clamp speeds and improved machine layout. The Cincinnati is a true global machine in design and availability. Cincinnati Series: Standard Features Advanced 2 Platen Technology powered by energy efficient servo motor hydraulic system Enhanced reliability driven by a proven Fanuc AC servo motor and drive package Direct control of pressure and flow via internal gear pumps Multiple servo motor system for independent operation of eject and core pull Improved layout of manifolds and hoses on non-operator side Monitored shut off valve to pump suction lines LED lighted dual channel pressure transducer for reduced down time Designed for serviceability (test ports, access, etc) Independent full time kidney-loop filtration and cooling (Optional external filtration system) Filtration to 3 micron with clog detection and alarm Ports for external auxiliary filtration plumbing Open conveyor access for part removal under clamp base (Optional high base designs) Open access to ejector area for quick/easy mold change Robot interface ANSI146 (compatible with Euro-map 67) Robot mounting pads on stationary platen (Optional SPI plates) Power operated operator’s gate Flareless bite type fittings with elastomeric seals for hydraulic tubes connections
