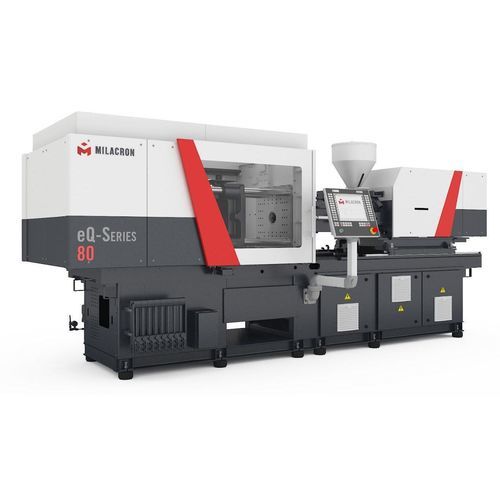

Horizontal injection molding machine eQ series

fully-electric

Overview
The eQ-Series all-electric performance platform sets industry standards. Milacron’s eQ-Series is an all-electric injection molding machine controlled by latest-generation servo drives to maximize acceleration, enable precise motion control and reduce cycle times. Regenerative Servo Drive technology returns excess energy to the power supply, lowering overall energy consumption. Engineered for high rigidity, the eQ-Series supports production of a wide range of parts with consistent repeatability. Cleanroom-ready construction makes it suitable for applications requiring precise process control and high-speed injection. The eQ-Series operates without water or hydraulic oil.

Additional Info
The standard Mold and Ejector Protection system continuously monitors for retained parts or foreign objects between core and cavity. Combined with high-speed responsiveness, advanced motion control and programmable clamp tolerances, this protection minimizes repairs and downtime while maintaining cycle speed. An optional bolt-on injection unit provides a fully electric injection solution with servo-driven precision for applications demanding maximum acceleration and accuracy.

Features

• All-electric platform controlled by latest-generation servo drives
• Regenerative Servo Drive technology for reduced energy consumption
• High-rigidity machine design
• Cleanroom-ready construction for demanding applications
• Clamp system mounted on LM guideways for precise, low-friction movement
• High-performance injection unit with selectable injection dynamics to support special processes and extend component life
• Integrated powerpack located inside the machine base to reduce footprint and eliminate external powerpack
• Optional bolt-on injection unit for high-precision fully electric injection molding
• Available MOSAIC 15" touch controller: configurable layout, Windows OS, self-diagnostics, extensive data collection and automation integration, multi-level data protection
• Optional suite including remote support (M-Powered)

More than Machines
Milacron positions the eQ-Series within a broader offering of plastic processing solutions including sustainability consulting, operator training and IIoT platforms to optimize production and processes.

Available In / Capacity & Performance (summary)
Available clamping range: 50–650 metric tons
Typical average cycle reduction example: 0.5 second
Available regions: Africa, Asia/Pacific, Europe

Technical specifications

• Model family: eQ-Series (all-electric injection molding platform)
• Clamping tonnage range: 50–650 metric tons
• Average cycle reduction example: 0.5 second (typical)
• Drive technology: Latest-generation servo drives with Regenerative Servo Drive capability
• Injection options: High-performance injection unit with selectable injection dynamics; optional bolt-on fully electric injection unit
• Clamp system: LM guideways-mounted clamp for precise movement and minimal frictional loss
• Powerpack: Integrated powerpack inside machine base (no external powerpack required)
• Control system: MOSAIC 15" touch controller — configurable UI, Windows OS, data collection, automation integration, self-diagnostics
• Mold protection: Mold and Ejector Protection standard (closed-loop continuous monitoring)
• Suitability: Cleanroom-ready design for precision, high-speed injection and consistent repeatability
• Resource considerations: All-electric operation; no water or hydraulic oil required
