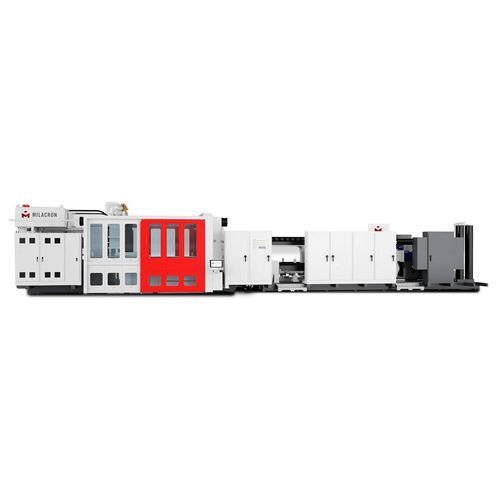

Horizontal injection molding machine L

servo-hydraulicgas-assistedlarge capacity

Overview
The Milacron L-Series is a large-part low-pressure injection molding platform designed for single-cycle production of ultra-large plastic parts using structural foam, structural web, gas-assist and solid part molding techniques. The machine integrates a rugged clamp, nozzle sequencing for multi-resin or multi-color shots, FANUC servo drives and MOSAIC+ controls to improve process repeatability and energy efficiency while protecting mold assets.

Key Statistics
Available tonnage: 500-2500 US
Maximum shot size: 400 lb

Available In

• Africa
• Asia/Pacific
• Europe
• North America
• South America

Additional Info
Milacron’s Structural Foam process creates parts with a solid surface and a cellular foamed core by introducing nitrogen during resin melt and allowing internal gas expansion during injection. This enables thicker wall sections and detailed geometries at lower mold pressures, often using simpler aluminum molds. Structural Web uses targeted gas injection through mold nozzles to create internal hollow channels and reduce sink, delivering good cosmetic finish and color uniformity without gas in the melt phase.

Features

• Processing modes: structural foam, structural web, gas assist, solid part molding
• FANUC servo drive package for improved performance and energy efficiency
• MOSAIC+ 21" multi-touch controller (configurable layout, Windows OS, remote camera interface, diagnostics)
• Single or twin extruder configurations
• Shot sizes up to 400 lb and throughput up to 6400 lb/hr
• Optional systems: product handling, quick mold change, resin loading/blending, gas controllers, hot runner controllers, remote diagnostics (M-Powered)

Technical specifications

• Available tonnage: 500-2500 US
• Maximum shot size: 400 lb
• Platens: up to 110 in. x 200 in.
• Injection nozzle locations: up to 280
• Throughput: up to 6400 lb/hr
• Processing modes: structural foam, structural web, gas assist, solid molding
• Control: MOSAIC+ 21" multi-touch controller (configurable, remote camera interface, Windows OS)
• Drive: FANUC servo drive package
• Extruder options: single or twin
• Optional systems: handling, quick mold change, resin loading/blending, gas controllers, hot runner controllers, remote diagnostics (M-Powered)
