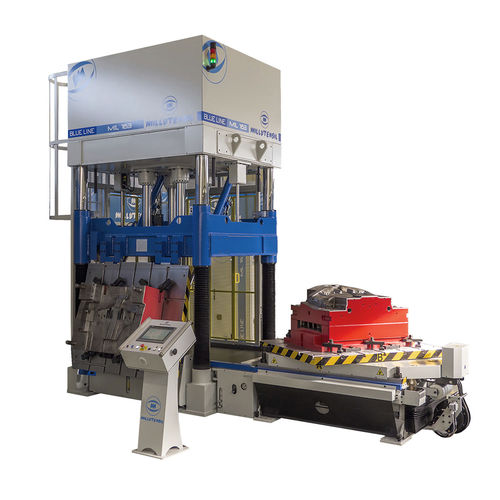

oleodynamic press / die-spotting / test / tryout
die-spotting, test, tryout
with pressure regulator, PLC, with movable table, repair, for industrial applications, for the automotive industry, for plastics, for automotive parts, turntable, column type, 4-column, rotating table
Max.: 1,200 mm (47 in)
Min.: 200 mm (8 in)
Max.: 1,500 kN
Min.: 0 kN
The die & mould spotting presses of the traditional mil/classic series feature the extensible plate exit on the side, towards the short side of the distance between columns. They are typically used in the plastics, rubber, and die casting sectors. This solution allows tilting on the extensible plate short side up to 70° on both sides. In this version, the upper plate, too, is tilted on the short side from 100° to 180°.
The mil/classic series offers great advantages compared to the presses of other manufacturers with long side rotation:
Better working ergonomics, with possibility for the operator to have easy access to any mould part without using any platforms;
Much shorter total press height above ground, which often avoids useless costs for foundations;
wide base press structure with greater stability;
The two mould-halves are located on the same side, so operators have an overview of the whole mould and can work in a more comfortable way.
