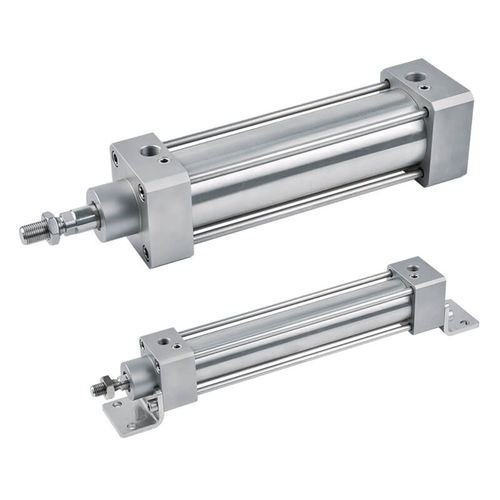

Pneumatic cylinder MCQVS seriesstainless steelISO 15552food
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Material
- stainless steel
- Norms
- ISO 15552
- Applications
- food
- Other characteristics
- standard
- Pressure
Max.: 1 MPa
Min.: 0.1 MPa
- Rod diameter
Max.: 100 mm
(4 in)Min.: 32 mm
(1 in)- Speed
Max.: 1,000 mm/s
Min.: 50 mm/s
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
Tube I.D. φ 32, 40, 50, 63, 80, 100 (mm). AISI 316 stainless steel. Fits the chemical, food and pharmaceutical environment. Conformance to ISO 15552 specification. Available with comprehensive internationally recognised range of fixed and flexible mountings.
•AISI 316 stainless steel
Fits the chemical, food and pharmaceutical environment.
•ISO 15552 standard specification
Conforms to ISO 15552 specification enabling worldwide interchangeability.
•Cylinder mountings
Available with comprehensive internationally recognised range of fixed and flexible mountings.
Catalogs
MCQVS
11 Pages
