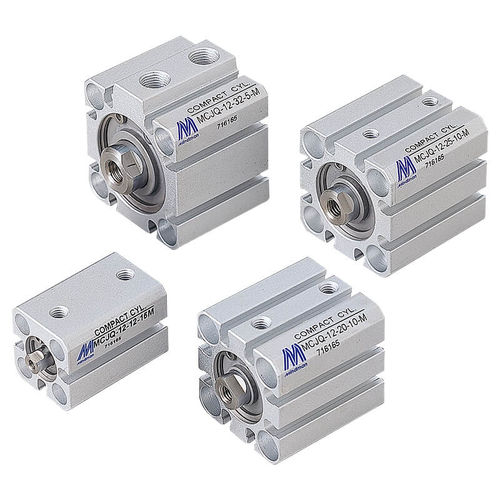

Compact cylinder MCJQ3pneumaticdouble-actingsingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Configuration
- double-acting, single-acting
- Material
- aluminum
- Other characteristics
- compact, abrasion-resistant
- Pressure
Max.: 1 MPa
Min.: 0 MPa
- Rod diameter
Max.: 100 mm
(4 in)Min.: 12 mm
(0 in)- Speed
Max.: 500 mm/s
Min.: 50 mm/s
- Operating Temperature
Max.: 60 °C
(140 °F)Min.: -5 °C
(23 °F)
Description
Tube I.D. φ 12, 16, 20, 25, 32 ,40, 50, 63, 80, 100 (mm), All products use counterbore and thread installation design without any fixed frame to meet the space saving requirements.
• All products use counterbore and thread installation design without any fixed frame to meet the space saving requirements.
• Anodised aluminum tubes provie better corrosion and abrasion resistance.
• The assembly grooves are designed around the body to make the sensor easier to install and fix.
• Compact assembly groove design make the sensors enable to flush mount and can save space.
• Sensors can be mounted on any one of three faces for 12 and 16 bore and on four faces for 20~100 bore.
