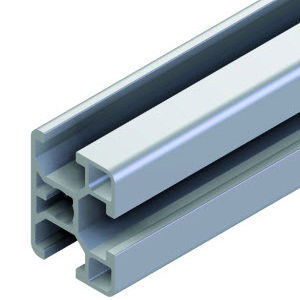

Aluminum profile 20.1117/0groovedindustriallightweight
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Configuration
- grooved
- Applications
- industrial
- Other characteristics
- lightweight, extruded
- Width
23 mm
(0.906 in)- Height
30 mm
(1.181 in)
Description
echn. Data / Items supplied
• - Aluminium, extruded, anodized E6/EV1
• - Ix = 1.565 cm4
• - Iy = 1.187 cm4
• - wx = 1.043 cm3
• - wy = 0.975 cm3
• - Weight = 0.524 kg/m
• - Bar length = 6 m
• - Packing unit = 72 m
Applications
• - Light constructions with protective hoods, covers, etc.
Assembly
• - Power-lock fastener 30 / N 30
• - Mitre connector 30
• - Screw connection 30
• - Angle 16 / 30
• - Attaching accessories with sliding nut 30 M4 / M5 / M6 / M8
Catalogs
MiniTec Profile System
612 Pages
Other Minitec products
Aluminium Profiles
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
