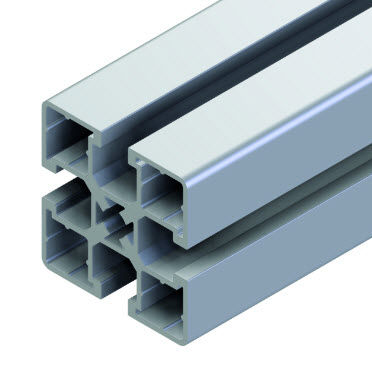

Aluminum profile 20.1063/0groovedindustrialextruded
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Configuration
- grooved
- Applications
- industrial
- Other characteristics
- extruded
- Width
45 mm
(1.8 in)- Height
45 mm
(1.8 in)
Description
Techn. Data / Items supplied
• - Aluminium, extruded, anodized E6/EV1
• - Ix = 9.953 cm4
• - Iy = 9.953 cm4
• - wx = 4.423 cm3
• - wy = 4.423 cm3
• - Weight = 1.445 kg/m
• - Bar length = 6 m
• - Packing unit = 54 m
Applications
• - Weight-optimized constructions
• - All kinds of constructions
Assembly
• - MiniTec power-lock fastener
• - Angle 19 / 25 / 45 / 45 x 90 GD-Z
• - Bolt connector
• - Screw connection
Catalogs
MiniTec Profile System
612 Pages
