Round plug TF - TFA - NYPO-24

threadedfemaleplastic

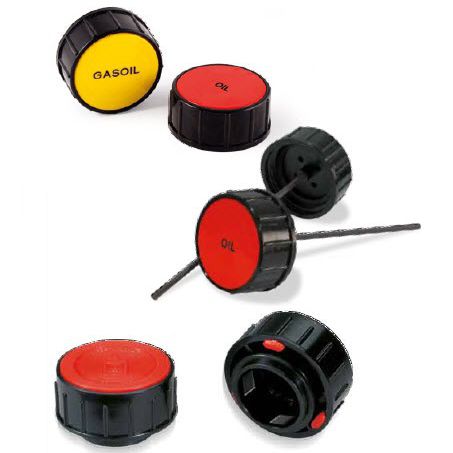

Miselli presents Model TF/TFA female threaded filler breather caps. They have M60x2, or 2BSP thread. The caps are made from Polyamide 66. They provide excellent mechanical resistance at low as well as high temperatures up to 100°C, along with shock resistance. The standard filler breather cap is made in red color for oil, and for diesel fuel in yellow color. Customized color options are provided on large orders. A Polyurethane foam filter is included within the filler breather cap. The filter has 40 microns filtering degree. It has a flat NBR 70 shore seal, which is resistant to oil. A plated, steel dipstick with 5mm diameter is provided with Model TFA. The dipstick is made in a length of 200 mm. For large orders, the dipstick can be customized to suit customer specifications. Also available with the dipstick are MIN-MAX notches. Model NYPO-24 is a filler breather with spring retention clips. It has been designed to suit steel boss with outside diameter of 39mm and inside diameter of 32 mm.
