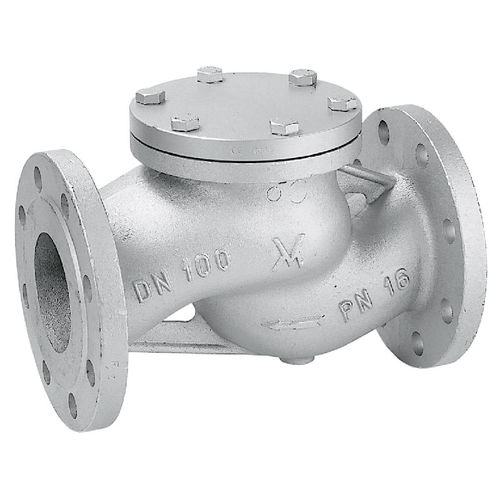

Disc check valve 56 flangeflow controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Body
- flange
- Applications
- flow control, for water, for steam
- Material
- stainless steel, cast iron
- Other characteristics
- spring
- DN
Min.: 15 mm
(0.591 in)Max.: 300 mm
(11.811 in)- Pressure
Min.: 11.2 bar
(162.4 psi)Max.: 16 bar
(232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 350 °C
(662 °F)
Description
Check valves, Check valves streamlined flow type, Check valves streamlined flow type on nodular cast iron PN 16 (EN-GJS-400-15)
Streamlined flow check valve series PN 16. EN-GJS-400-18-LT nodular cast iron body. Carbon steel cover. Stainless steel seats. Graphite + stainless steel gaskets. Spring for all DN for working also in a vertical position on zinc plated steel. Connection flanges dressed and drilled according to EN 1092-2 PN 16 with rised face.
