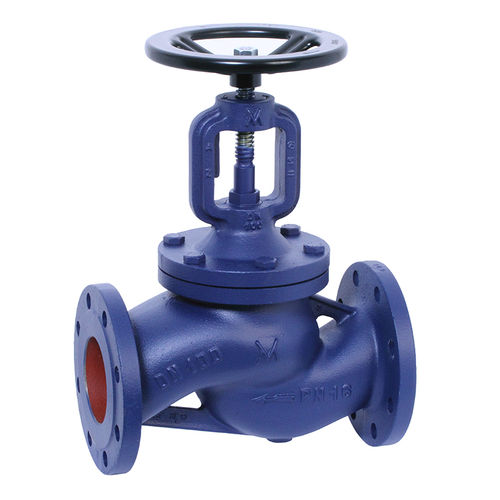

Globe valve 150 series
with handwheelflow controlfor hot water

globe valve
globe valve
Add to favorites
Compare this product


Characteristics

Type
globe
Operation
with handwheel
Function
flow control
Media
for hot water, for oil, for air, for steam
Body
flange, cast iron
Applications
industrial, for heating systems, for tanks, for boilers
Other characteristics
thermal
Temperature

Max.: 300 °C (572 °F)

Min.: -10 °C (14 °F)

Pressure

Max.: 16 bar (232.1 psi)

Min.: 9.6 bar (139.2 psi)

DN

Max.: 250 mm (9.843 in)

Min.: 15 mm (0.591 in)

Flow rate

Max.: 1,044 m³/h (36,869 ft³/h)

Min.: 5 m³/h (177 ft³/h)

Description

Streamlined flow valves, Streamlined flow valves traditional type, Streamlined flow valves traditional type on cast iron PN 16 (EN-GJL-250) Traditional type valve – Item 150 Application Heat transfer systems, thermal power stations, industrial boilers and tanks, etc. Suitable for Hot water and/or overheated water, steam, air, etc.
